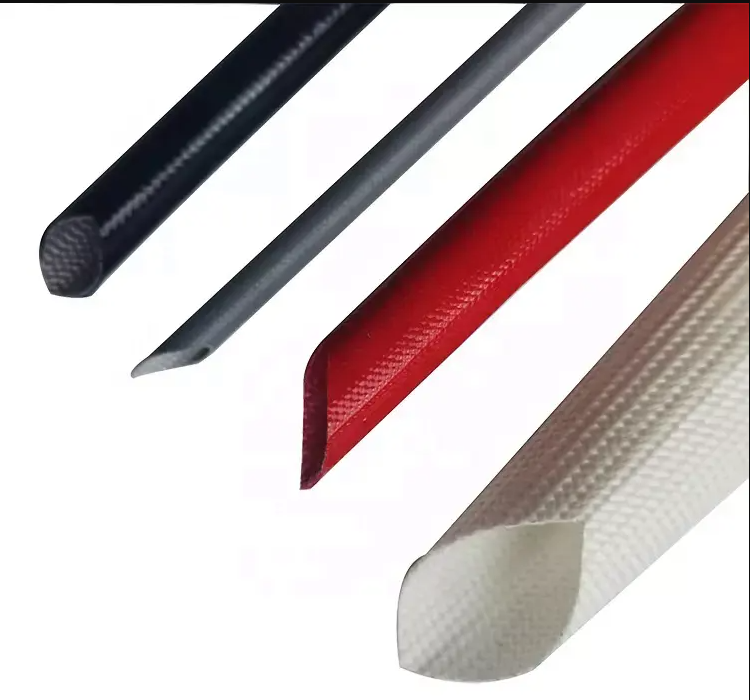

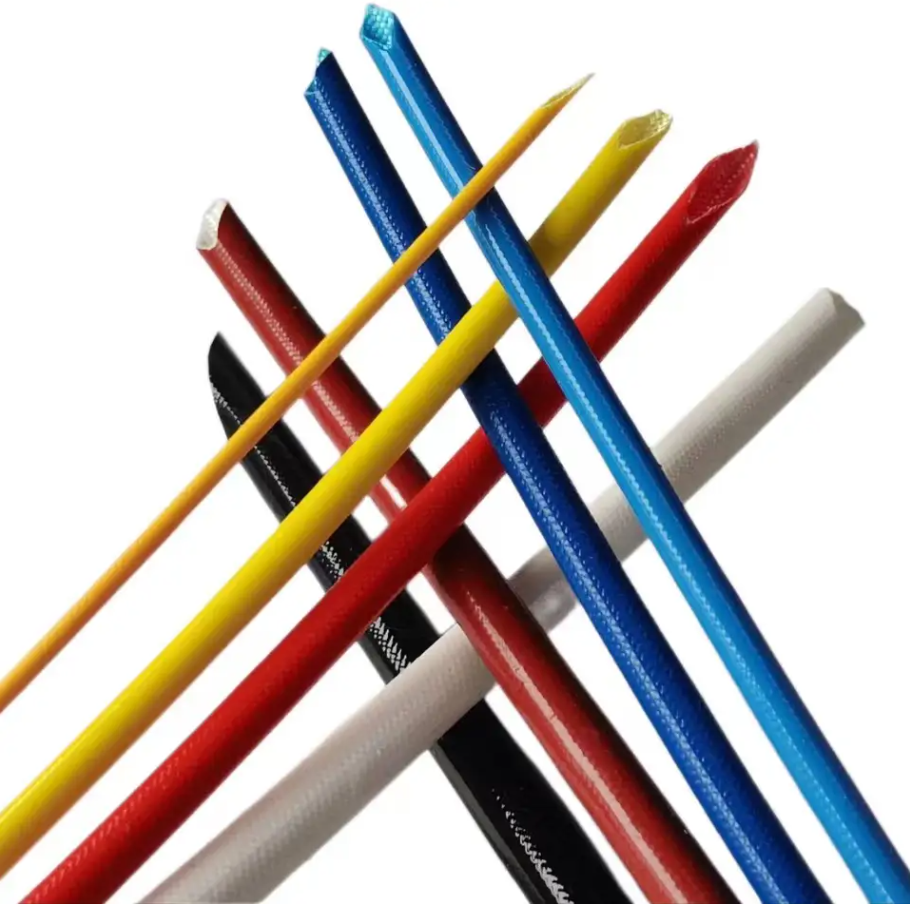

Silicone Resin Fiberglass Sleeving
Insutek KSG Series of Silicone Resin Fiberglass Sleeving is braided from top class of Non-alkali fiberglass, then coated with silicone resin, treated at high temperature. It has ideal performance of Dielectric strength, self-extinguishing, flexibility, and flame retardancy. It is widely used in High temperature, High Voltage circumstances, such as electric motors, heating equipment, transformers, engines, generators etc.
Insutek KSG Series of Silicone Resin Fiberglass Sleeving is braided from top class of Non-alkali fiberglass, then coated with silicone resin, treated at high temperature. It has ideal performance of Dielectric strength, self-extinguishing, flexibility, and flame retardancy. It is widely used in High temperature, High Voltage circumstances, such as electric motors, heating equipment, transformers, engines, generators etc.
|
Type |
Breakdown Voltage(V) |
Temperature Resistance |
Flame Resistance |
|
|
Average |
Minimum |
|||
|
KSG-1.5 |
1500 |
1000 |
+200℃-40℃ |
UL 1441 VW-1 |
|
KSG-2.5 |
2500 |
1800 |
+200℃-40℃ |
|
|
KSG-4.0 |
4000 |
3000 |
+200℃-40℃ |
|
|
Part No. |
l.D. |
|
Wall |
Wall |
Wall |
Packaging |
|
Tolerance |
thickness |
thickness |
thickness |
|||
|
|
1.5 kV |
2.5 kV |
4 kV |
meter |
||
|
KSG-1.0 |
1 |
+0.3/-0.1 |
0.30±0.05 |
0.40±0.05 |
0.50±0.05 |
200 |
|
KSG-1.5 |
1.5 |
+0.3/-0.1 |
0.30±0.05 |
0.40±0.05 |
0.50±0.05 |
200 |
|
KSG-2.0 |
2 |
+0.3/-0.1 |
0.30±0.05 |
0.40±0.05 |
0.50±0.05 |
100 |
|
KSG-2.5 |
2.5 |
+0.3/-0.1 |
0.30±0.05 |
0.40±0.05 |
0.50±0.05 |
100 |
|
KSG-3.0 |
3 |
+0.3/-0.1 |
0.35±0.05 |
0.40±0.05 |
0.50±0.05 |
100 |
|
KSG-3.5 |
3.5 |
+0.3/-0.1 |
0.35±0.05 |
0.45±0.05 |
0.50±0.05 |
100 |
|
KSG-4.0 |
4 |
+0.3/-0.1 |
0.35±0.05 |
0.45±0.05 |
0.50±0.05 |
100 |
|
KSG-5.0 |
5 |
+0.4/-0.1 |
0.40±0.05 |
0.45±0.05 |
0.50±0.05 |
100 |
|
KSG-6.0 |
6 |
+0.4/-0.1 |
0.45±0.05 |
0.50±0.05 |
0.60±0.05 |
100 |
|
KSG-7.0 |
7 |
+0.4/-0.1 |
0.45±0.05 |
0.50±0.05 |
0.60±0.05 |
100 |
|
KSG-8.0 |
8 |
+0.4/-0.1 |
0.50±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-9.0 |
9 |
+0.5/-0.1 |
0.50±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-10.0 |
10 |
+0.5/-0.1 |
0.50±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-11.0 |
11 |
+0.5/-0.1 |
0.50±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-12.0 |
12 |
+0.5/-0.1 |
0.50±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-13.0 |
13 |
+0.5/-0.1 |
0.50±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-14.0 |
14 |
+0.5/-0.1 |
0.50±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-15.0 |
15 |
+0.5/-0.1 |
0.50±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-16.0 |
16 |
+0.6/-0.1 |
0.50±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-18.0 |
18 |
+0.8/-0.1 |
0.55±0.05 |
0.60±0.05 |
0.70±0.05 |
50 |
|
KSG-20.0 |
20 |
+0.8/-0.1 |
0.55±0.05 |
0.60±0.05 |
0.70±0.05 |
25 |
|
KSG-25.0 |
25 |
+1.0/-0.1 |
0.55±0.05 |
0.60±0.05 |
0.70±0.05 |
25 |
|
KSG-30.0 |
30 |
+1.0/-0.1 |
0.55±0.05 |
0.60±0.05 |
0.70±0.05 |
25 |
