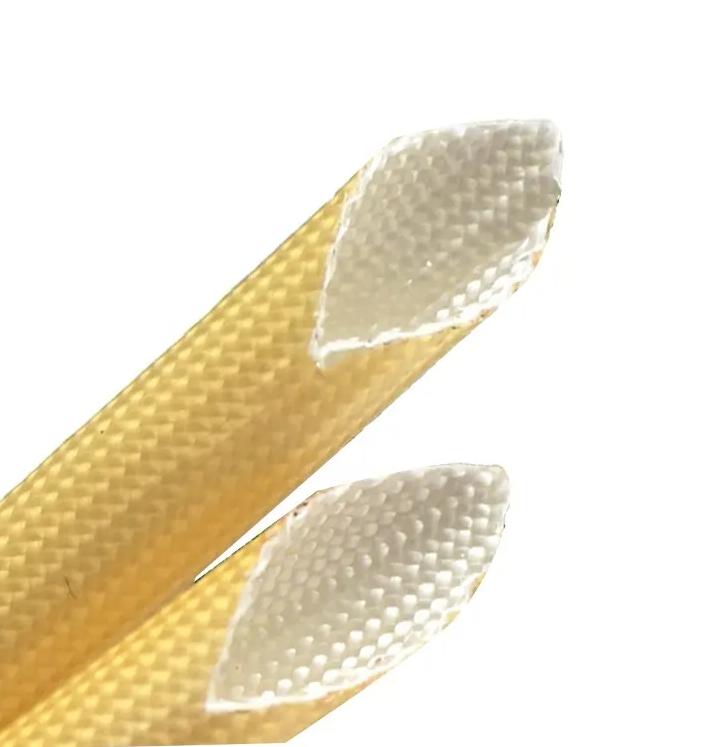

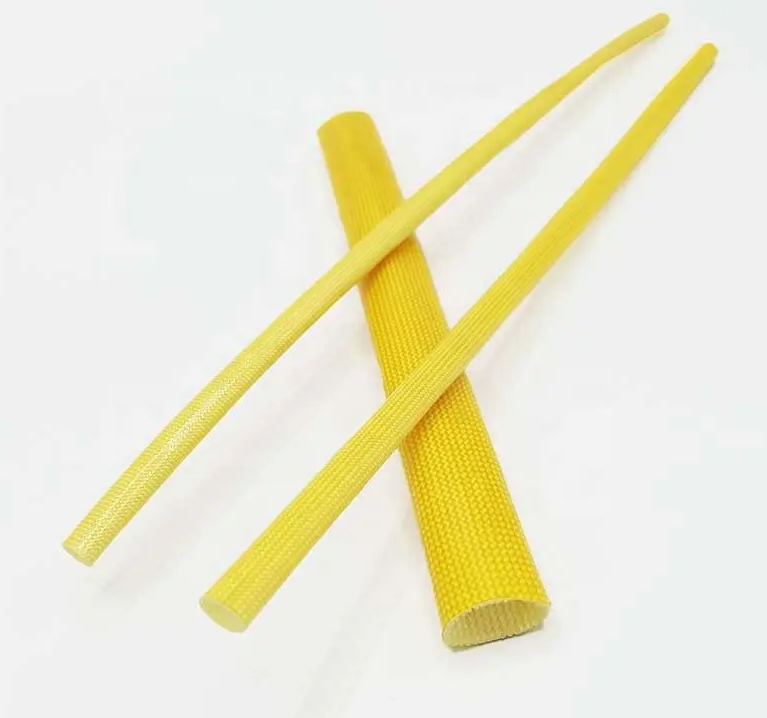

Polyurethane Fiberglass Sleeving
Insutek KPFS Series of Polyurethane fiberglass sleeve is made of alkali-free fiberglass yarn, which is finely woven into embryonic tube by high-speed knitting machine, and then coated with polyurethane with special configuration and cured at high temperature. The Temperature resistance can reach more than 150 ℃, with excellent electrical performance, good mechanical wear resistance and elasticity. It is widely used for insulation, thermal and mechanical protection of F-class motors, electrical appliances and other devices
Insutek KPFS Series of Polyurethane fiberglass sleeve is made of alkali-free fiberglass yarn, which is finely woven into embryonic tube by high-speed knitting machine, and then coated with polyurethane with special configuration and cured at high temperature. The Temperature resistance can reach more than 150 ℃, with excellent electrical performance, good mechanical wear resistance and elasticity. It is widely used for insulation, thermal and mechanical protection of F-class motors, electrical appliances and other devices
|
Specification |
|
|
Property |
Standard |
|
Heat resistance |
170ºC*3 hours No cracking on surface |
|
Chemical resistance |
Excellent oil resistance and benzene resistance |
|
Electrical performance |
Rated voltage 300V |
|
ID |
ID Tolerance |
Wall Thickness（mm） |
Wall Thickness（mm） |
Wall Thickness（mm） |
Wall Thickness（mm） |
|
（mm） |
（mm） |
breakdown 1500V |
2500V |
4000V |
7000V |
|
0.5 to 3.5 |
0.1 |
0.38±0.12 |
0.41±0.12 |
0.45±0.15 |
0.52±0.15 |
|
4.0 to 9.0 |
0.1 |
0.42±0.15 |
0.46±0.15 |
0.48±0.15 |
0.55±0.15 |
|
10 to 12 |
0.4 |
0.50±0.20 |
0.52±0.20 |
0.58±0.20 |
0.65±0.20 |
|
14 to 16 |
0.4 |
||||
|
18 to 35 |
0.6 |
0.65±0.25 |
0.70±0.25 |
0.75±0.25 |
1.10±0.30 |
Packing:
0.5mm ~ 4.5mm 200m/roll
5.0mm ~12.0mm 100 m/roll
14.0mm ~ 35.0mm 50 m/roll
