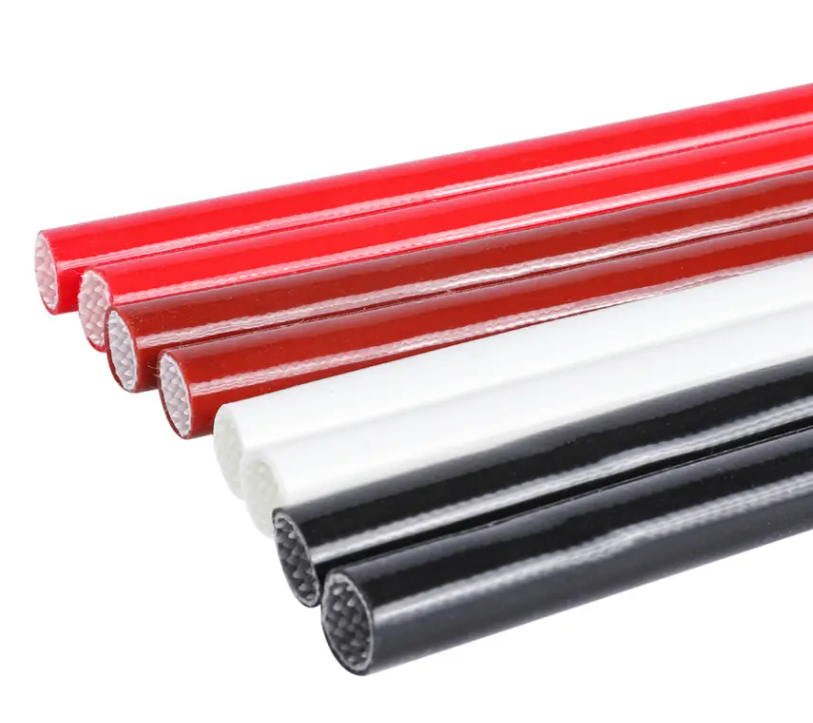

Silicone Rubber Fiberglass Sleeving(inside fiber and outside silicone)
Insutek KRFS Series of Silicone Rubber Fiberglass Sleeving (inside fiber and outside silicone) is braided from non-alkali fiberglass, then the outer wall coated with silicone under high temperature and vulcanization. It has better properties of dielectric strength, anti-aging and flame retardancy. It is widely used in High temperature, high voltage circumstances, offers great insulation protection to automotive, generators, heating equipment, home appliance, lighting, transformers etc.
Insutek KRFS Series of Silicone Rubber Fiberglass Sleeving (inside fiber and outside silicone) is braided from non-alkali fiberglass, then the outer wall coated with silicone under high temperature and vulcanization. It has better properties of dielectric strength, anti-aging and flame retardancy. It is widely used in High temperature, high voltage circumstances, offers great insulation protection to automotive, generators, heating equipment, home appliance, lighting, transformers etc.
|
Type |
Breakdown Voltage（V） |
Temperature Resistance |
Flame Resistance |
|
|
Average |
Minimum |
|||
|
KRFS |
7000 |
5000 |
+200℃-40℃ |
UL 1441 VW-1 |
|
Par No. |
I.D.（mm） |
Tolerance |
7KV |
Packing |
|
M/spool |
||||
|
KRFS-0.8 |
0.8 |
+0.25/-0.00 |
0.50±0.10 |
200 |
|
KRFS -1.0 |
1 |
+0.25/-0.00 |
0.50±0.10 |
200 |
|
KRFS -1.5 |
1.5 |
+0.25/-0.00 |
0.50±0.10 |
200 |
|
KRFS -2.0 |
2 |
+0.25/-0.00 |
0.50±0.10 |
200 |
|
KRFS -2.5 |
2.5 |
+0.25/-0.00 |
0.50±0.10 |
200 |
|
KRFS -3.0 |
3 |
+0.30/-0.00 |
0.52±0.10 |
100 |
|
KRFS -3.5 |
3.5 |
+0.30/-0.00 |
0.52±0.10 |
100 |
|
KRFS -4.0 |
4 |
+0.30/-0.00 |
0.52±0.10 |
100 |
|
KRFS -4.5 |
4.5 |
+0.30/-0.00 |
0.52±0.10 |
100 |
|
KRFS -5.0 |
5 |
+0.35/-0.00 |
0.55±0.10 |
100 |
|
KRFS -6.0 |
6 |
+0.35/-0.00 |
0.55±0.10 |
100 |
|
KRFS -7.0 |
7 |
+0.40/-0.00 |
0.60±0.10 |
100 |
|
KRFS -8.0 |
8 |
+0.40/-0.00 |
0.60±0.10 |
50 |
|
KRFS -9.0 |
9 |
+0.40/-0.00 |
0.60±0.10 |
50 |
|
KRFS -10.0 |
10 |
+0.50/-0.00 |
0.65±0.10 |
50 |
|
KRFS -11.0 |
11 |
+0.50/-0.00 |
0.65±0.10 |
50 |
|
KRFS -12.0 |
12 |
+0.50/-0.00 |
0.65±0.10 |
50 |
|
KRFS -13.0 |
13 |
+0.50/-0.00 |
0.65±0.10 |
50 |
|
KRFS -14.0 |
14 |
+0.50/-0.00 |
0.65±0.10 |
50 |
|
KRFS -15.0 |
15 |
+0.50/-0.00 |
0.70±0.10 |
50 |
|
KRFS -16.0 |
16 |
+0.60/-0.00 |
0.70±0.10 |
50 |
|
KRFS -17.0 |
17 |
+0.60/-0.00 |
0.70±0.10 |
50 |
|
KRFS -18.0 |
18 |
+0.60/-0.00 |
0.70±0.10 |
50 |
|
KRFS -19.0 |
19 |
+0.60/-0.00 |
0.70±0.10 |
50 |
|
KRFS -20.0 |
20 |
+0.80/-0.00 |
0.70±0.10 |
50 |
|
KRFS -25.0 |
25 |
+0.80/-0.00 |
0.70±0.10 |
25 |
|
KRFS -30.0 |
30 |
+0.80/-0.00 |
0.85±0.10 |
25 |
|
KRFS -35.0 |
35 |
+0.80/-0.00 |
0.85±0.10 |
25 |
