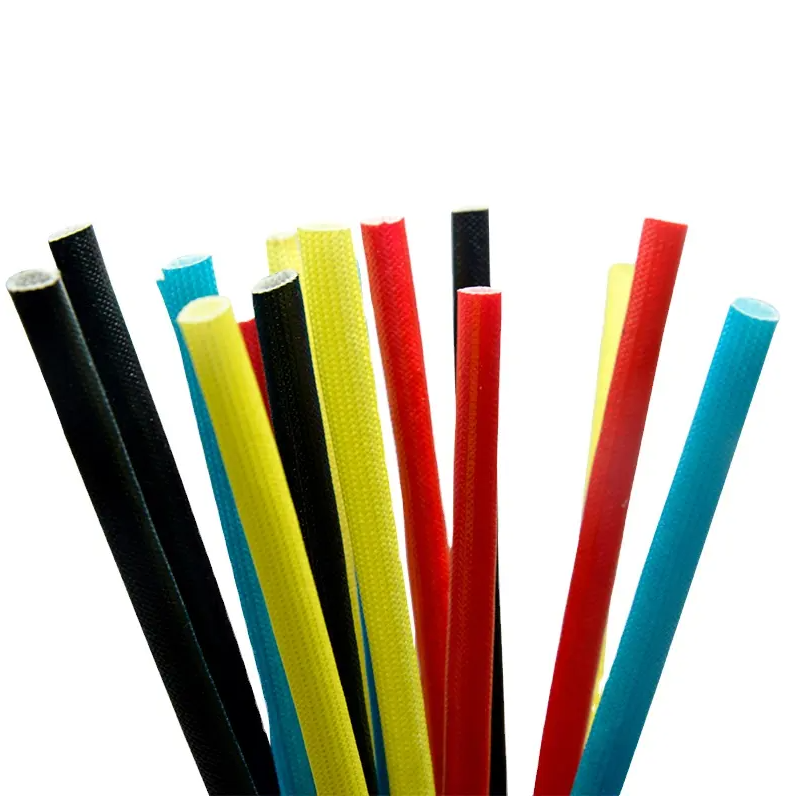

Acrylic Fiberglass Sleeving
Insutek KAFS Series of Acrylic Fiberglass Sleeving is braided into tubes from Alkali-free glass fiber, then coated with Acrylic Resin. It has good dielectric properties, flexibility and elasticity, which could be widely used in wiring insulation and mechanical protection for motor, electrical appliances, instruments, radio and other devices.
Insutek KAFS Series of Acrylic Fiberglass Sleeving is braided into tubes from Alkali-free glass fiber, then coated with Acrylic Resin. It has good dielectric properties, flexibility and elasticity, which could be widely used in wiring insulation and mechanical protection for motor, electrical appliances, instruments, radio and other devices.
|
Grade |
Heat Resistance |
Avg. Voltage |
Lowest Voltage |
Oil Resistance |
|
KAFS-1.5 |
-40ºC~+155ºC |
1500V |
800V |
Yes(Non-water resistance) |
|
KAFS -2.5 |
-40ºC~+155ºC |
2500V |
1500V |
Yes(Non-water resistance) |
|
KAFS -4.0 |
-40ºC~+155ºC |
4000V |
2500V |
Yes(Non-water resistance) |
|
KAFS -7.0 |
-40ºC~+155ºC |
7000V |
4000V |
Yes(Non-water resistance) |
|
ID(mm) |
Minimum Thickness(mm) |
||||
|
Nominal |
Tolerance |
7.0KV |
4.0KV |
2.5KV |
1.5KV |
|
0.5~2.5mm |
+0.25, -0.00mm |
0.42mm |
0.38mm |
0.20mm |
0.18mm |
|
3.0~4.5mm |
+0.30, -0.00mm |
0.48mm |
0.45mm |
0.23mm |
0.20mm |
|
5.0~6.0mm |
+0.40, -0.00mm |
0.50mm |
0.45mm |
0.28mm |
0.25mm |
|
7.0~9.0mm |
+0.55, -0.00mm |
0.55mm |
0.50mm |
0.32mm |
0.28mm |
|
10.0~14.0mm |
+0.75, -0.00mm |
0.65mm |
0.60mm |
0.40mm |
0.35mm |
|
15.0~25.0mm |
+0.85, -0.00mm |
0.70mm |
0.64mm |
0.43mm |
0.40mm |
|
|
|
0.5mm ~ 4.5mm 200 m/roll |
|
5.0mm ~ 12.0mm 100 m/roll |
|
14.0mm ~25.0mm 50 m/roll |
