PPS Braided Sleeving

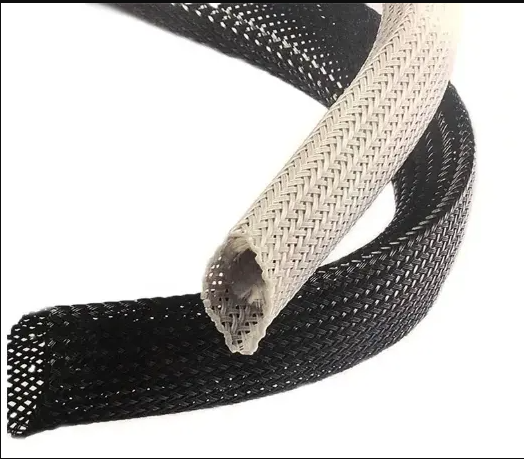

Insutek KPPS series of sleeving, is braided from flame resistant PolyPhenylene Sulfide (PPS) monofilament fibers. It is extremely lightweight, resistant to High-Low temperatures and also have strong anti-corrosion property, which is ideal for application of aerospace, automotive, railway, telecom and military etc.
Insutek KPPS series of sleeving, is braided from flame resistant PolyPhenylene Sulfide (PPS) monofilament fibers. It is extremely lightweight, resistant to High-Low temperatures and also have strong anti-corrosion property, which is ideal for application of aerospace, automotive, railway, telecom and military etc.
|
Technical Data |
|
|
Material |
Polyester |
|
Operating Temperature |
-70℃-+200℃ |
|
Melt point |
285±10℃ |
|
Flammability |
UL94V0 |
|
Standard color |
Black |
|
Approval |
ROHS,REACH, |
|
Cutting tool |
Hot knife |
|
Datasheet |
||||||
|
Nominal size |
Part No. |
Expanded range(mm) |
Structure |
Packing |
||
|
Inch |
mm |
Min |
Max |
|

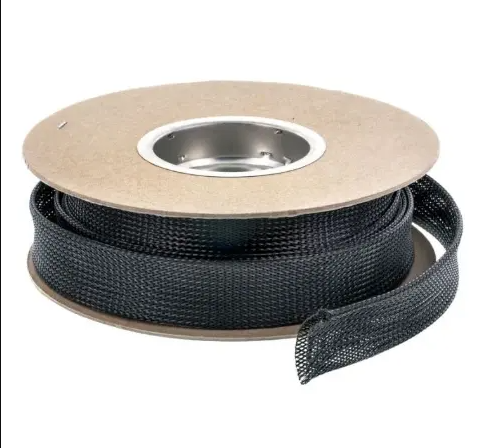

standard spool |
|
|
1/8" |
3 |
KPPS-0.13 |
1 |
6 |
3*0.20mm*16 |
1000 m |
|
1/4" |
6 |
KPPS -0.25 |
3 |
9 |
3*0.20mm*32 |
500 m |
|
5/16" |
8 |
KPPS -0.31 |
5 |
16 |
3*0.20mm*40 |
500 m |
|
3/8" |
10 |
KPPS -0.38 |
7 |
19 |
3*0.20mm*48 |
500 m |
|
1/2" |
12 |
KPPS -0.50 |
8 |
24 |
3*0.25mm*40 |
500 m |
|
5/8" |
15 |
KPPS -0.62 |
10 |
27 |
3*0.25mm*48 |
500 m |
|
3/4" |
18 |
KPPS -0.75 |
12 |
25 |
3*0.25mm*56 |
250 m |
|
4/5" |
20 |
KPPS -0.80 |
14 |
30 |
3*0.25mm*64 |
250 m |
|
1" |
25 |
KPPS -1.00 |
18 |
35 |
3*0.25mm*72 |
200 m |
|
1 1/4" |
30 |
KPPS -1.25 |
20 |
50 |
3*0.20mm*96 |
200 m |
|
1 3/8" |
35 |
KPPS -1.37 |
25 |
55 |
3*0.20mm*120 |
100 m |
|
1 1/2" |
40 |
KPPS -1.50 |
30 |
60 |
3*0.25mm*120 |
100 m |
|
1 3/4" |
45 |
KPPS -1.75 |
35 |
75 |
4*0.25mm*120 |
100 m |
|
2" |
50 |
KPPS -2.00 |
40 |
80 |
5*0.25mm*120 |
50 m |
|
2 1/2" |
60 |
KPPS -2.50 |
55 |
105 |
6*0.25mm*120 |
50 m |
|
3" |
70 |
KPPS -3.00 |
64 |
120 |
7*0.25mm*120 |
50 m |
