Nylon Expandable Braided Sleeving

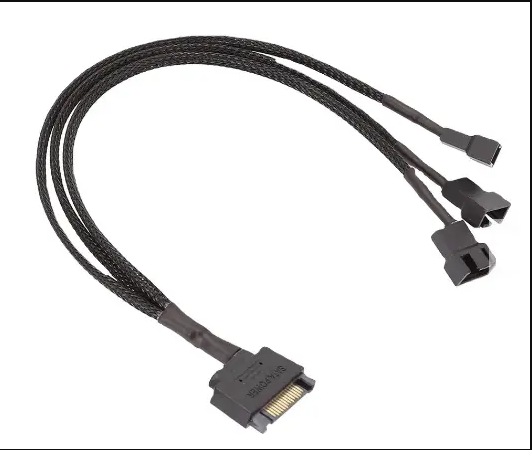

Insutek Nylon braided sleeving is constructed from nylon 6-6 Polyamide filaments, which has excellent vibration and abrasion property than general purpose PET type. It offers ideal protection for the wire harness or hose from common fluids and chemical, enlarge the lifespan, which is widely used in automotive, military and aerospace area.
Insutek Nylon braided sleeving is constructed from nylon 6-6 Polyamide filaments, which has excellent vibration and abrasion property than general purpose PET type. It offers ideal protection for the wire harness or hose from common fluids and chemical, enlarge the lifespan, which is widely used in automotive, military and aerospace area.
|
Technical data |
|
|
Material |
Polyamides |
|
Operating Temperature |
-50℃-+160℃ |
|
Melt point |
256±5℃ |
|
Flammability |
UL-94V2 |
|
Standard color |
Black |
|
Approval |
ROHS,REACH, |
|
Cutting tool |
Hot knife |
|
Datasheet |
|||||
|
Nominal size |
Part No. |
Expanded range(mm) |
Packing |
||
|
Inch |
mm |
Min |
Max |

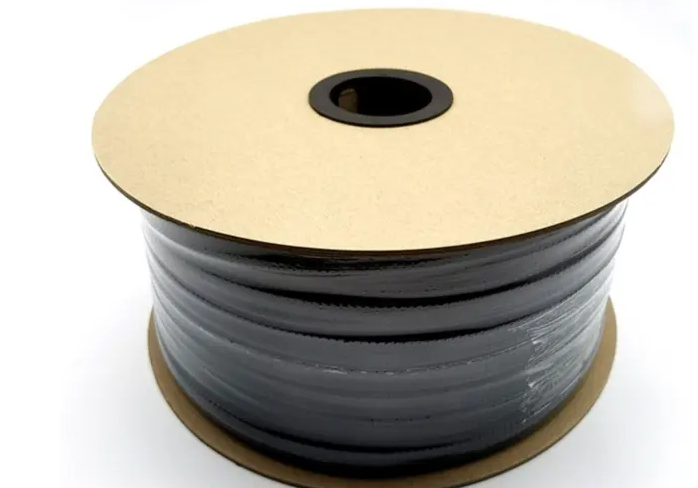

standard spool |
|
|
1/8" |
3 |
KPA-0.13 |
1 |
6 |
1000 m |
|
1/4" |
6 |
KPA -0.25 |
3 |
9 |
500 m |
|
5/16" |
8 |
KPA -0.31 |
5 |
16 |
350 m |
|
3/8" |
10 |
KPA -0.38 |
7 |
19 |
350 m |
|
1/2" |
12 |
KPA -0.50 |
8 |
24 |
300 m |
|
5/8" |
15 |
KPA -0.62 |
10 |
27 |
250 m |
|
3/4" |
20 |
KPA -0.75 |
14 |
30 |
200 m |
|
1" |
25 |
KPA -1.00 |
18 |
35 |
200 m |
|
1 1/4" |
30 |
KPA -1.25 |
20 |
50 |
150 m |
|
1 1/2" |
40 |
KPA -1.50 |
30 |
60 |
100 m |
|
1 3/4" |
45 |
KPA -1.75 |
35 |
75 |
100 m |
|
2" |
50 |
KPA -2.00 |
40 |
80 |
50 m |
|
2 1/2" |
64 |
KPA -2.50 |
45 |
105 |
50 m |
|
3" |
76 |
KPA -3.00 |
64 |
120 |
50 m |
