Self Closing Braided Sleeving

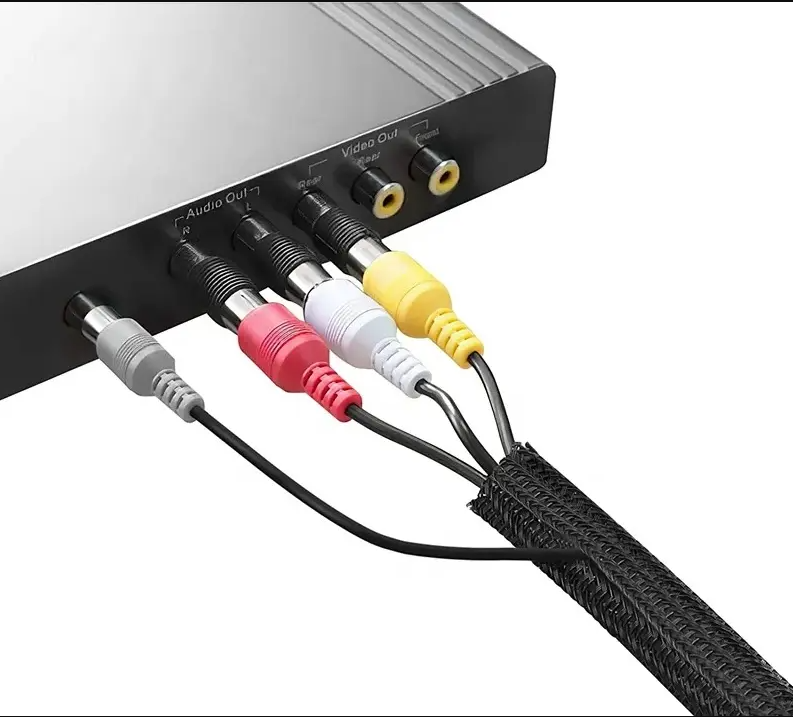

Insutek Self-Closing Braided Wrap Sleeve is a non-expandable sleeve, which is braided from flame-retardant monofilament yarns(weft) and multifilament (warp) yarns. It could provide excellent Abrasion Resistance & Protection to different applications. The Split open design makes the inner wire harness more convenient to be installed.
insutek Self-Closing Braided Wrap Sleeve is a non-expandable sleeve, which is braided from flame-retardant monofilament yarns(weft) and multifilament (warp) yarns. It could provide excellent Abrasion Resistance & Protection to different applications. The Split open design makes the inner wire harness more convenient to be installed.
|
Technical data |
|
|
Material |
Polyester |
|
Operating Temperature |
-50℃-+150℃ |
|
Melt point |
240±10℃ |
|
Flammability |
UL94 V2 |
|
Standard color |
Black |
|
Approval |
ROHS,REACH, |
|
Cutting tool |
Hot knife |
|
Datasheet |
||||
|
Nominal size |
Part No. |
Expanded range(mm) |
Packing |
|
|
Inch |
mm |
Max |
standard spool |
|
|
1/8" |
3 |
KCW -0.12 |
4 |
100 m |
|
1/4" |
6 |
KCW -0.25 |
7 |
100 m |
|
3/8" |
9 |
KCW -0.38 |
10 |
100 m |
|
1/2" |
13 |
KCW -0.50 |
14 |
50 m |
|
5/8" |
16 |
KCW -0.62 |
17 |
50 m |
|
3/4" |
19 |
KCW -0.75 |
20 |
25 m |
|
1" |
25 |
KCW -1.00 |
26 |
25 m |
|
1 1/4" |
32 |
KCW -1.25 |
33 |
25 m |
|
1 1/2" |
38 |
KCW -1.50 |
40 |
25 m |
|
2" |
50 |
KCW -2.00 |
52 |
25 m |
