PET High Flame Retardant Expandable Braided Sleeving

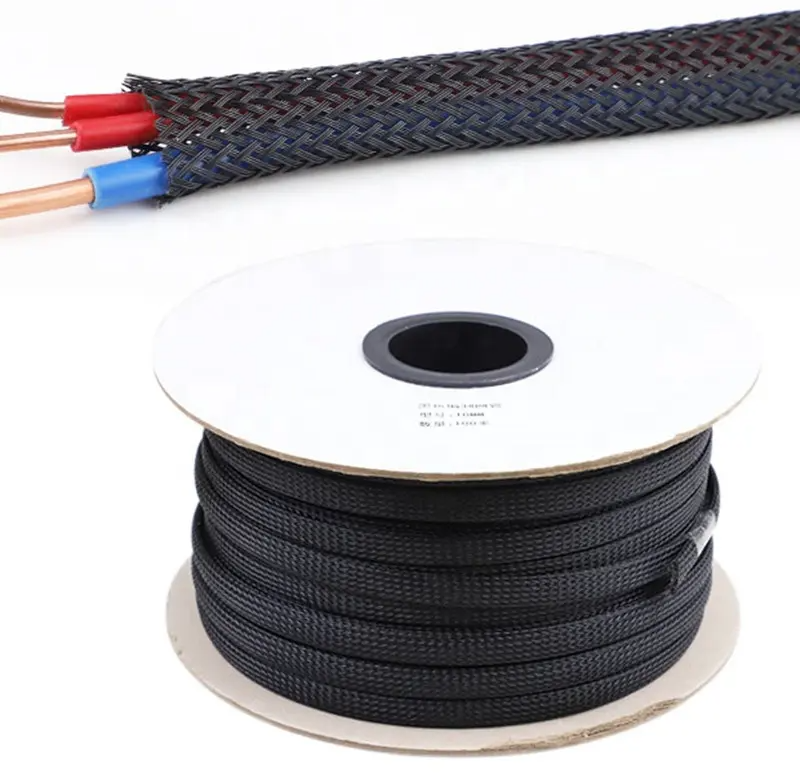

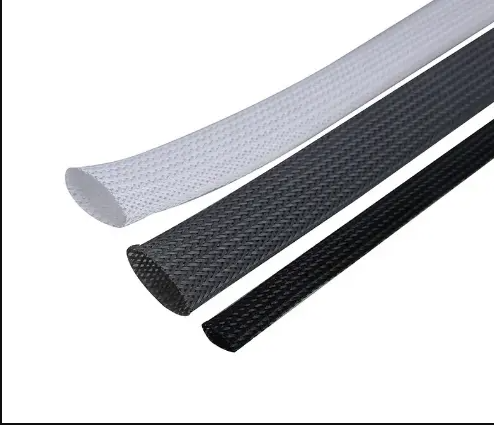

Insutek KHPET series of Expandable Sleeve is braided from high flame-retardant polyethylene terepthalate (PET) monofilament yarns. It could provide excellent Abrasion Resistance & Protection to different applications, such as automotive wire harness, cable assembly, optical fiber etc. The unique braided construction could ensure fast and convenient installation over large connectors, bundles and hoses. When fully expanded, it could reach 2 times than the original dimension
Insutek KHPET series of Expandable Sleeve is braided from high flame-retardant polyethylene terepthalate (PET) monofilament yarns. It could provide excellent Abrasion Resistance & Protection to different applications, such as automotive wire harness, cable assembly, optical fiber etc. The unique braided construction could ensure fast and convenient installation over large connectors, bundles and hoses. When fully expanded, it could reach 2 times than the original dimension
|
Technical data |
|
|
Material |
Polyester |
|
Operating Temperature |
-50℃-+150℃ |
|
Melt point |
240±10℃ |
|
Flammability |
UL94V-0 |
|
Standard color |
Black |
|
Approval |
ROHS,REACH, |
|
Cutting tool |
Hot knife |
|
Datasheet |
|||||
|
Nominal size |
Part No. |
Expanded range(mm) |
Packing |
||
|
Inch |
mm |
Min |
Max |
standard spool |
|
|
1/8" |
3 |
KHPET-0.13 |
1 |
6 |
1000 m |
|
1/4" |
6 |
KHPET -0.25 |
3 |
9 |
500 m |
|
5/16" |
8 |
KHPET -0.31 |
5 |
16 |
350 m |
|
3/8" |
10 |
KHPET -0.38 |
7 |
19 |
350 m |
|
1/2" |
12 |
KHPET -0.50 |
8 |
24 |
300 m |
|
5/8" |
15 |
KHPET -0.62 |
10 |
27 |
250 m |
|
3/4" |
20 |
KHPET -0.75 |
14 |
30 |
200 m |
|
1" |
25 |
KHPET -1.00 |
18 |
35 |
200 m |
|
1 1/4" |
30 |
KHPET -1.25 |
20 |
50 |
150 m |
|
1 1/2" |
40 |
KHPET -1.50 |
30 |
60 |
100 m |
|
1 3/4" |
45 |
KHPET -1.75 |
35 |
75 |
100 m |
|
2" |
50 |
KHPET -2.00 |
40 |
80 |
50 m |
|
2 1/2" |
64 |
KHPET -2.50 |
45 |
105 |
50 m |
|
3" |
70 |
KHPET -3.00 |
64 |
120 |
50 m |
