Heat Shrink Tubing for Fiber Optic Closures
Insutek KFSC series of Fiber Optic splice closure heat shrinkable tube, is kind of specially designed product which suitable for sealing communication optical cable splice box, enclosures, overhead, directly buried communication cable.
Insutek KFSC series of Fiber Optic splice closure heat shrinkable tube, is kind of specially designed product which suitable for sealing communication optical cable splice box, enclosures, overhead, directly buried communication cable.
It consists of: Outer layer medium wall heat shrink tube and inner layer of adhesive. The outer layer of tubing can provide reliable external protection, and the high performance inner hot melt adhesive can provide reliable waterproof performance , and prevent gas leakage in the splice box.
Features:
- Anti-UV, waterproof, Corrosion resistance, Resistance to mechanical damage
- Hot melt adhesive prevents the leakage of the filling gas of the optical fiber connection box, which can pass 10 times of High-Low Temperature cycling test.

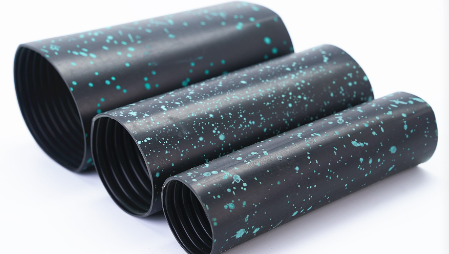

- The surface of the product can be sprayed with color-changing paint, which is convenient for heat shrink operation instructions
- Operating Temperature: -55 to +110℃, Minimum Shrink Temperature: 125℃
- Shrink Ratio: 4:1
- Color-changing paint: Begin to turn color at 220℃
|
Property |
Test method |
Typical figures |
|
Density |
ASTM D2671 |
0.95~1.00 |
|
Hardness (shore D) |
ASTM D2671 |
≥ 45 HD |
|
Tensile strength |
ASTM D2671 |
≥19 MPa |
|
Elongation |
ASTM D2671 |
≥450% |
|
Tensile strength after aging |
ASTM D2671 |
≥18 MPa |
|
158 ℃/168 hours Elongation |
ASTM D2671 |
≥400% |
|
Dielectric strength |
ASTM D2671 |
≥15 kV/mm |
|
Fungus resistance |
ASTM G21 |
None growth |
|
UV resistance |
ASTM G53 |
2000hours，Elongation≥360% |
|
Water absorption |
ASTM D570 |
23℃/24 hours 0.2% max |
|
Low temperature flexiblity(outer) |
ASTM D2671 |
-40℃/4hours, no cracking |
|
Low temperature flexiblity(inner) |
ASTM D2671 |
-20℃/4hours，no cracking |
|
sealing |
23℃/100kPa for 24h, immersed in water for 15min |
Pass |
|
Thermal aging |
60℃/168hour, air pressure 70kPa |
Pass |
|
Elongation |
D/45*1500N, air pressure 60kPa,24 hours |
No leaking |
|
special fluid |
70% gasoline and 30% toluene |
No leaking |
|
Model |
As supplied(mm) |
After recovery(mm) |
length |
|
|
KFSC |
ID（min） |
ID（max） |
wall thickness (mm) |
mm |
|
28/6 |
28 |
6 |
2.9 |
150 or 180 or 200 |
|
30/6 |
30 |
6 |
3.0 |
150 or 180 or 200 |
|
33/8 |
33 |
8 |
3.0 |
150 or 180 or 200 |
|
35/10 |
35 |
10 |
3.1 |
150 or 180 or 200 |
|
38/9 |
38 |
9 |
3.5 |
150 or 180 or 200 |
|
43/9 |
43 |
9 |
3.8 |
150 or 180 or 200 |
|
45/10 |
45 |
10 |
3.8 |
150 or 180 or 200 |
|
50/12 |
50 |
12 |
3.7 |
150 or 180 or 200 |
|
55/16 |
55 |
16 |
3.7 |
150 or 180 or 200 |
|
65/20 |
65 |
20 |
3.6 |
150 or 180 or 200 |
|
75/20 |
75 |
20 |
3.7 |
150 or 180 or 200 |
|
75/22 |
75 |
22 |
3.7 |
150 or 180 or 200 |
|
85/25 |
85 |
25 |
3.8 |
150 or 180 or 200 |
|
95/25 |
95 |
25 |
4.2 |
150 or 180 or 200 |
|
105/30 |
105 |
30 |
4.2 |
150 or 180 or 200 |
