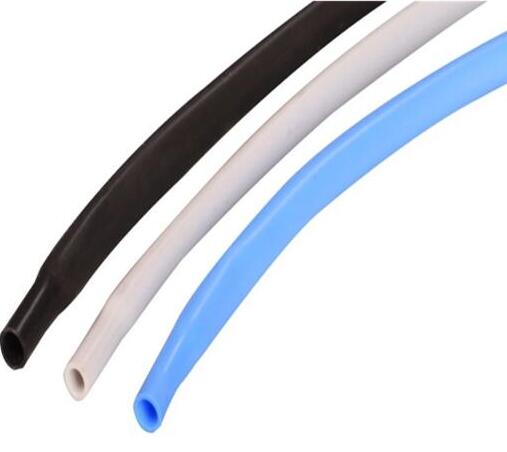

Silicone Rubber Heat Shrink Tubing
Insutek KSRT series of Silicone Rubber Heat Shrink Tubing is produced with superior silicone rubber, then extruded to tubing and completed after vulcanization. It has excellent flexibility, high temperature resistance, high-grade elasticity, arc resistance, corona treatment resistance. It is widely used in insulating protection of household electrical appliances, electronic equipment, lighting etc.
Insutek KSRT series of Silicone Rubber Heat Shrink Tubing is produced with superior silicone rubber, then extruded to tubing and completed after vulcanization. It has excellent flexibility, high temperature resistance, high-grade elasticity, arc resistance, corona treatment resistance. It is widely used in insulating protection of household electrical appliances, electronic equipment, lighting etc.
Features
•Operate Temperature: –50 to 200°C
•Minimum Shrink Temperature: 90°C
•Shrink Ratio: 1.7:1
•Rohs,Reach
|
Properties |
Condition |
Value |
|
Physical: Tensile strength |
ASTM D 638 |
≥10.5Mpa |
|
Elongation |
ASTM D 638 |
≥400% |
|
Tensile strength afrer aging |
200±1℃,168hr |
≥70% of original |
|
Elongation after aging |
200±1℃,168hr |
≥100% of original |
|
Heat shock |
Heat shock 250℃, 4hrs |
No cracking |
|
Electrical: Dielectric Voltage withstand |
ASTM D 149 |
≥7000V |
|
Volume resistivity |
ASTM D 876 |
1014Ω·cm |
|
Corrosion |
ASTM D 2671 |
Pass |
|
Copper stability |
200±1℃,168hr |
Pass |
|
Voltage rating |
5000V/10000V |
|
|
Test conditions for flame retardancy |
Alcoholic lamp 60 seconds |
non flame retardant |
|
Temperature rating |
200℃ |
Pass |
|
Size |
Shrink size |
Wall thickness |
After recovery |
Wall Thickness |
|
I.D. |
Thin type |
I.D. |
Thin type |
|
|
Φ1.0 |
1.0 |
0.5±0.1 |
0.6 |
0.7±0.1 |
|
Φ1.5 |
1.5 |
0.5±0.1 |
0.8 |
0.7±0.1 |
|
Φ2.0 |
2.0 |
0.5±0.1 |
1.2 |
0.7±0.1 |
|
Φ2.5 |
2.5 |
0.5±0.1 |
1.5 |
0.7±0.1 |
|
Φ3.0 |
3.0 |
0.5±0.1 |
1.8 |
0.7±0.1 |
|
Φ3.5 |
3.5 |
0.5±0.1 |
2 |
0.7±0.1 |
|
Φ4.0 |
4.0 |
0.5±0.1 |
2.5 |
0.7±0.1 |
|
Φ4.5 |
4.5 |
0.5±0.1 |
2.8 |
0.7±0.1 |
|
Φ5.0 |
5.0 |
0.5±0.1 |
3 |
0.7±0.1 |
|
Φ6.0 |
6.0 |
0.5±0.1 |
3.8 |
0.7±0.1 |
|
Φ7.0 |
7.0 |
0.5±0.1 |
4 |
0.7±0.1 |
|
Φ8.0 |
8.0 |
0.5±0.1 |
4.8 |
0.7±0.1 |
|
Φ9.0 |
9.0 |
0.5±0.1 |
5 |
0.7±0.1 |
|
Φ10.0 |
10.0 |
1.0±0.1 |
6.5 |
1.7±0.1 |
|
Φ12 |
12.0 |
1.0±0.1 |
7 |
1.7±0.1 |
|
Φ15 |
15.0 |
1.0±0.1 |
9 |
1.7±0.1 |
|
Φ20 |
20.0 |
1.0±0.1 |
13 |
1.7±0.1 |
|
Φ25 |
25.0 |
1.0±0.1 |
15 |
1.7±0.1 |
|
Φ30 |
30.0 |
1.0±0.1 |
18 |
1.7±0.1 |
|
Φ35 |
35.0 |
1.0±0.1 |
20 |
1.7±0.1 |
|
Φ40 |
38.0 |
1.0±0.1 |
25 |
1.7±0.1 |
|
Φ50 |
47.0 |
1.0±0.1 |
30 |
1.7±0.1 |
|
Φ60 |
57.0 |
1.5±0.1 |
38 |
2.5±0.1 |
|
Φ70 |
67.0 |
1.5±0.1 |
45 |
2.5±0.1 |
|
Φ80 |
77.0 |
1.5±0.1 |
48 |
2.5±0.1 |
|
Φ90 |
87.0 |
1.5±0.1 |
52 |
2.5±0.1 |
|
Φ110 |
107.0 |
1.5±0.1 |
63 |
2.5±0.1 |
