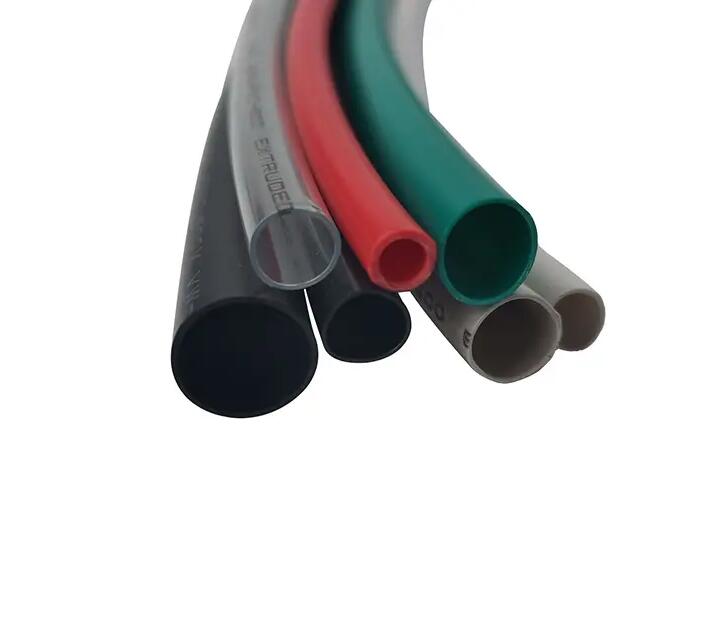

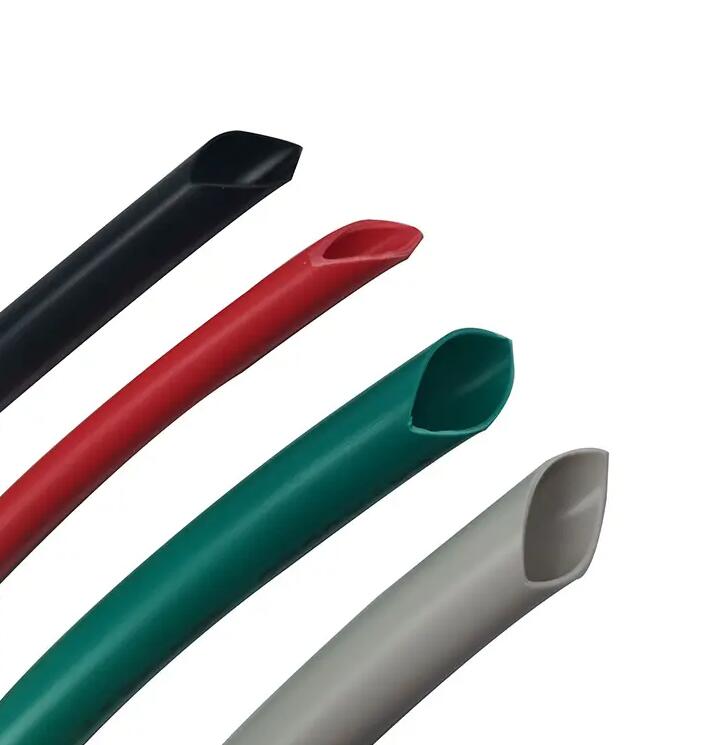

PVC Tubing
nsutek Polyvingl Chloride(PVC) Tubing is produced with superior and environmental PVC colloidal particle, then treated by evaporation, extruded to tubing after heated up and liquated. It has excellent flexibility, mechanical capability, dielectric capability, flame resistance and etc, using temperature being from -30℃ to +105℃. It is widely used in outside insulating protection of electrical appliances, transformers, electrical motors, lighting, outgoing lines, electronic equipment, wires etc.
Related products
Insutek Polyvingl Chloride(PVC) Tubing is produced with superior and environmental PVC colloidal particle, then treated by evaporation, extruded to tubing after heated up and liquated. It has excellent flexibility, mechanical capability, dielectric capability, flame resistance and etc, using temperature being from -30℃ to +105℃. It is widely used in outside insulating protection of electrical appliances, transformers, electrical motors, lighting, outgoing lines, electronic equipment, wires etc.
Benefits
• Operating Temperature: –30 to 105°C
• Flame retardant
• Low Temperature Flexibility
• Lead Free, Low Odor
Features
- UL: 105°C, 300V/600V, VW-1
- CSA: 105°C, 300V/600V, VW-1
- Rohs
- Reach
|
Item |
Unit |
Test Method |
Numerical Value |
|
|
HCY-3 |
HCY-6 |
|||
|
Voltage rating |
V |
|
300 |
600 |
|
Temperature rating |
°C |
UL224 |
105 |
|
|
Voltage resistance |
Before aging |
UL224 23°C |
2500V/60sec |
|
|
After aging |
UL224 136°C 168hr |
2500V/60sec |
||
|
Volume resistivity |
Ωcm |
UL224 |
≥1010 |
|
|
Tensile strength |
Before aging |
Mpa |
UL224 23°C |
≥10.4 |
|
After aging |
Mpa |
UL224 136°C 168hr |
≥7.3 |
|
|
Elongation |
Before aging |
% |
UL224 23°C |
≥100% |
|
After aging |
% |
UL224 136°C 168hr |
≥100% |
|
|
Flexibility |
|
UL224 136°C 168hr |
No cracking |
|
|
Cold bend |
|
UL224 -30°C 1hr |
No cracking |
|
|
Copper stability |
|
UL224 136°C 168hr |
No corrosion |
|
|
Flame resistance |
|
UL224 |
VW-1 |
|
|
（One）The British system series of AWG |
||||
|
AWG No. |
Inner Diameter(mm) |
Wall Thickness (mm) |
Package(m/r) |
|
|
|
|
300V |
600V |
|
|
24 |
0.55±0.1 |
0.25±0.05 |
0.40±0.05 |
305 |
|
22 |
0.65±0.1 |
0.25±0.05 |
0.40±0.05 |
305 |
|
20 |
0.85±0.1 |
0.25±0.05 |
0.40±0.05 |
305 |
|
19 |
0.9±0.1 |
0.30±0.05 |
0.40±0.05 |
305 |
|
18 |
1.0±0.15 |
0.30±0.05 |
0.45±0.05 |
305 |
|
17 |
1.2±0.15 |
0.30±0.05 |
0.45±0.05 |
305 |
|
16 |
1.3±0.15 |
0.30±0.05 |
0.45±0.05 |
305 |
|
15 |
1.5±0.15 |
0.30±0.05 |
0.45±0.05 |
305 |
|
14 |
1.7±0.15 |
0.30±0.05 |
0.45±0.05 |
305 |
|
13 |
1.9±0.2 |
0.30±0.05 |
0.45±0.05 |
305 |
|
12 |
2.1±0.2 |
0.35±0.05 |
0.50±0.05 |
305 |
|
11 |
2.4±0.2 |
0.35±0.05 |
0.50±0.05 |
305 |
|
10 |
2.7±0.2 |
0.35±0.05 |
0.50±0.05 |
305 |
|
9 |
3.0±0.2 |
0.40±0.05 |
0.50±0.05 |
305 |
|
8 |
3.3±0.2 |
0.40±0.05 |
0.50±0.05 |
305 |
|
7 |
3.7±0.2 |
0.40±0.05 |
0.50±0.05 |
305 |
|
6 |
4.2±0.3 |
0.45±0.05 |
0.50±0.05 |
305 |
|
5 |
4.7±0.3 |
0.45±0.05 |
0.55±0.05 |
305 |
|
4 |
5.3±0.3 |
0.45±0.05 |
0.55±0.05 |
305 |
|
3 |
5.9±0.3 |
0.45±0.05 |
0.55±0.05 |
305 |
|
2 |
6.6±0.3 |
0.45±0.05 |
0.55±0.05 |
152 |
|
1 |
7.4±0.35 |
0.45±0.05 |
0.55±0.05 |
152 |
|
0 |
8.3±0.35 |
0.45±0.05 |
0.55±0.05 |
152 |
|
(Two) The British system series |
||||
|
Size (inch) |
Inner Diameter(mm) |
Wall thickness(mm) |
Packing (m/r) |
|
|
300V |
600V |
|||
|
5/16 |
8.0±0.35 |
0.45±0.05 |
0.55±0.05 |
152 |
|
3/8 |
9.5±0.35 |
0.50±0.05 |
0.55±0.05 |
152 |
|
7/16 |
11.1±0.35 |
0.55±0.10 |
0.65±0.10 |
152 |
|
1/2 |
12.7±0.35 |
0.55±0.10 |
0.65±0.10 |
152 |
|
9/16 |
14.3±0.4 |
0.65±0.10 |
0.75±0.10 |
76 |
|
5/8 |
16.0±0.4 |
0.65±0.10 |
0.75±0.10 |
76 |
|
3/4 |
19.0±0.4 |
0.65±0.10 |
0.75±0.10 |
76 |
|
7/8 |
22.0±0.5 |
0.75±0.15 |
0.85±0.15 |
76 |
|
1 |
25.0±0.5 |
0.75±0.15 |
0.85±0.15 |
76 |
|
0 |
27.0±0.8 |
0.75±0.15 |
0.85±0.15 |
76 |
|
Dimension (Three) The British system series |
|||
|
Inner Diameter |
Wall thickness(mm) |
Packing (m/r) |
|
|
(mm) |
300V |
600V |
|
|
0.80±0.1 |
0.25±0.05 |
0.40±0.05 |
500 |
|
1.0±0.1 |
0.30±0.05 |
0.40±0.05 |
500 |
|
1.5±0.1 |
0.33±0.05 |
0.45±0.05 |
400 |
|
2.0±0.2 |
0.33±0.05 |
0.50±0.05 |
400 |
|
2.5±0.2 |
0.35±0.05 |
0.50±0.05 |
300 |
|
3.0±0.2 |
0.40±0.05 |
0.50±0.05 |
300 |
|
3.5±0.2 |
0.40±0.05 |
0.50±0.05 |
300 |
|
4.0±0.2 |
0.45±0.05 |
0.55±0.05 |
300 |
|
4.5±0.3 |
0.45±0.05 |
0.55±0.05 |
300 |
|
5.0±0.3 |
0.45±0.05 |
0.55±0.05 |
300 |
|
6.0±0.3 |
0.45±0.05 |
0.55±0.05 |
300 |
|
7.0±0.3 |
0.45±0.05 |
0.55±0.05 |
150 |
|
8.0±0.35 |
0.45±0.05 |
0.55±0.05 |
150 |
|
9.0±0.35 |
0.50±0.05 |
0.60±0.05 |
150 |
|
10.0±0.35 |
0.55±0.10 |
0.65±0.10 |
150 |
|
11.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
|
12.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
|
13.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
|
14.0±0.40 |
0.55±0.10 |
0.65±0.10 |
150 |
|
15.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
|
16.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
|
17.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
|
18.0±0.40 |
0.60±0.10 |
0.70±0.10 |
50 |
|
19.0±0.40 |
0.65±0.10 |
0.75±0.10 |
50 |
|
20.0±0.50 |
0.65±0.10 |
0.75±0.10 |
50 |
|
21.0±0.50 |
0.65±0.10 |
0.75±0.10 |
50 |
|
22.0±0.50 |
0.70±0.10 |
0.80±0.10 |
50 |
|
23.0±0.50 |
0.70±0.10 |
0.80±0.10 |
50 |
|
24.0±0.50 |
0.75±0.10 |
0.85±0.10 |
50 |
|
25.0±0.50 |
0.75±0.10 |
0.85±0.10 |
50 |
|
26.0±0.50 |
0.85±0.10 |
0.85±0.10 |
50 |
