Heat Shrink Butt Connector

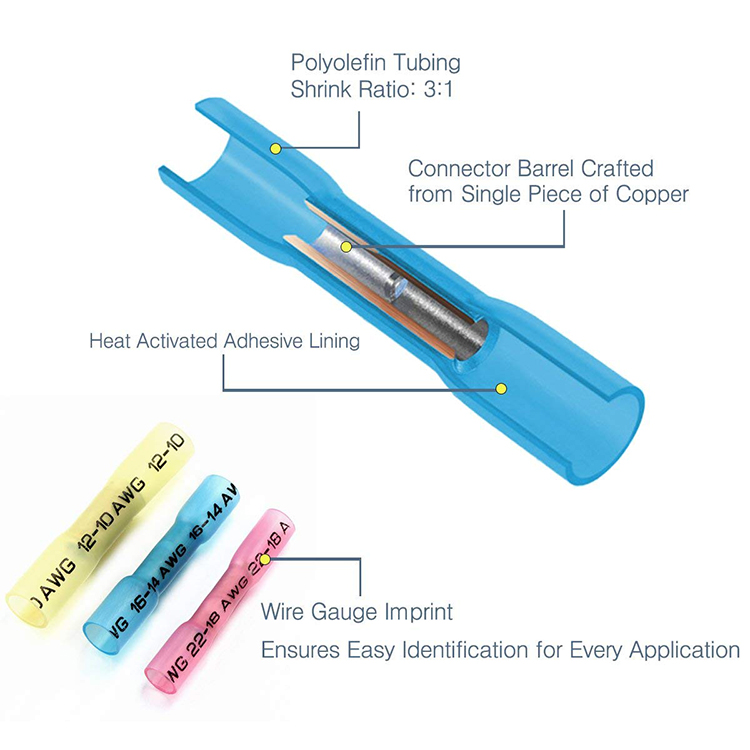

Insutek Heat Shrink Butt Connector contains two part: Copper Tubular and Polyolefin Heat Shrink Tubing with inner adhesive. It has excellent property of Connecting protection, water resistance, and anti-corrosion, which is widely applied for auto's, motorcycles, trailers and marine area.
Insutek Heat Shrink Butt Connector contains two part: Copper Tubular and Polyolefin Heat Shrink Tubing with inner adhesive. It has excellent property of Connecting protection, water resistance, and anti-corrosion, which is widely applied for auto's, motorcycles, trailers and marine area.
Benefits
Heat Shrink Tubing combine with tubular ;
Excellent water resistance ;
Halogen free, RoHS compliant ;
Abrasion and mechanical damage resistance ;
Features:
Working Temperature:-45~105 ℃
Shrink ratio: 3:1 ;
Voltage class: 1000V
Min Shrink Temperature: 110 ℃
|
Property |
Features |
Test method |
Values |
|
Physical |
Tensile strength |
ASTM D2671 |
≥16 MPa |
|
Breakdown elongation |
ASTM D2671 |
≥200% |
|
|
Tensile strength |
ASTM D2671 |
≥11.5 MPa |
|
|
Breakdown elongation |
ASTM D2671 |
≥100% |
|
|
Water absorption (23℃/336hrs) |
ASTM D570 |
≤0.5% |
|
|
Density |
ASTM D2671 |
0.95 |
|
|
Heat shock (250℃/4hrs) |
ASTM D2671 |
No drop, No flow(outer layer only) |
|
|
Cold bend ((-30℃/4hrs)) |
ASTM D2671 |
No cracking |
|
|
Electrical |
Volume resistivity |
ASTM D2671 |
≥1014Ω.cm |
|
Chemical |
Copper corrosion |
ASTM D2671 |
No corrosion |
|
Part Number |
Color |
Diameter Before Shrink (mm) |
Copper Tube length(mm) |
Connector Length(mm) |
Wire Size |
Standard package |
|
|
AWG |
mm2 |
pcs/pack |
|||||
|
SBC-01 |
Red |
4.7 |
1.7 |
35 |
22-18 |
0.5-1.0 |
50 |
|
SBC-02 |
Blue |
5.2 |
2.4 |
35 |
16-14 |
1.5-1.0 |
50 |
|
SBC-03 |
Yellow |
6.7 |
3.6 |
40 |
12-10 |
4.0-6.0 |
50 |
