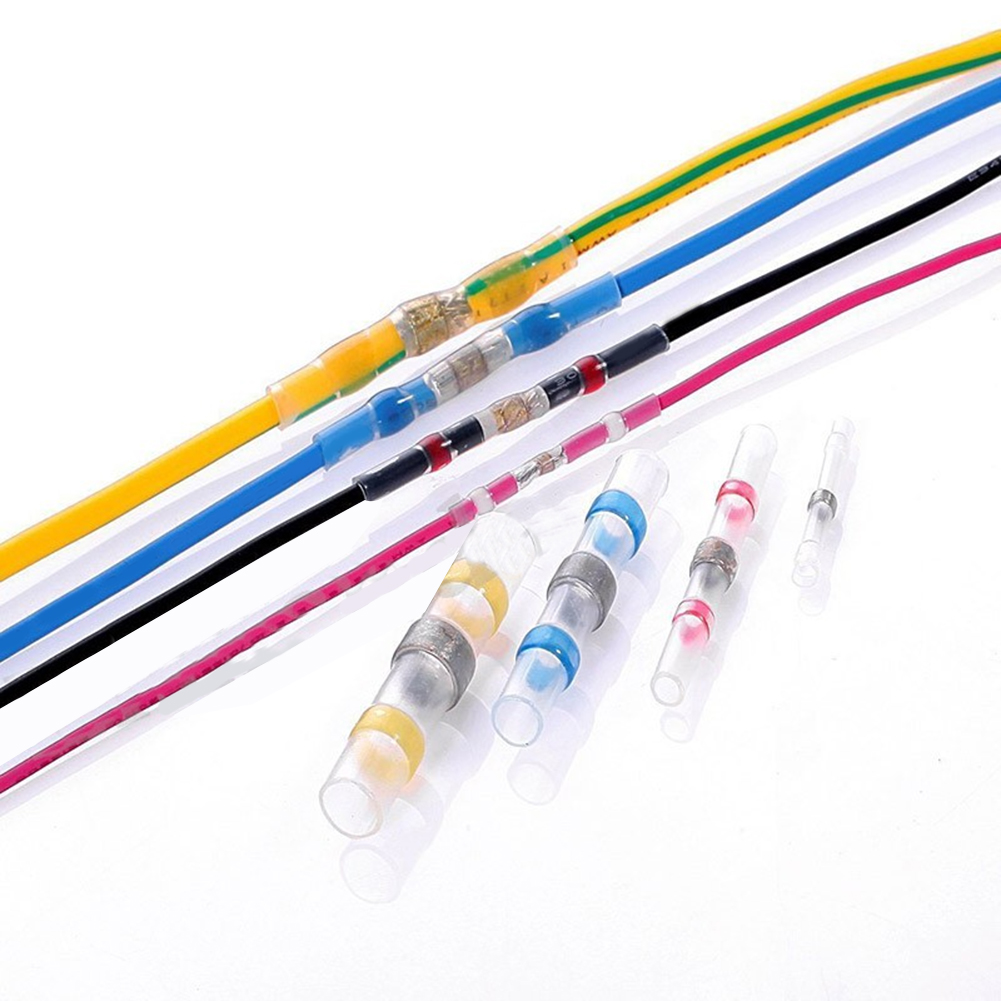

Heat Shrink Solder Butt Connector
Insutek Heat Shrink Solder Butt Connector is made of transparent Polyolefin Heat Shrink Tubing, with solder rings inside, which is used to mate, connect, or terminate single wire, and transfer electrical current.
Insutek Heat Shrink Solder Butt Connector is made of transparent Polyolefin Heat Shrink Tubing, with solder rings inside, which is used to mate, connect, or terminate single wire, and transfer electrical current.
Benefits
Heat Shrink Tubing combine with tubular ;
Excellent water resistance ;
Halogen free, RoHS compliant ;
Abrasion and mechanical damage resistance ;
Features:
Working Temperature:-45~105 ℃
Shrink ratio: 3:1 ;
Voltage class: 1000V
Min Shrink Temperature: 110 ℃
|
Property |
Test method |
Values |
|
Dielectric voltage withstand |
RT-1404 |
2.0 KV |
|
Voltage rating |
RT-1404 |
600V |
|
Voltage drop |
RT-1404 |
≤2.0 mV |
|
Copper corrosion |
UL224/ASTM D2671 |
Non-corrosive |
|
Reference |
As supplied |
Sleeve length |
Color |
Wire Range |
Standard package |
|
Part Number |
ID (mm) |
(mm) |
AWG & mm2 |
pcs/pack |
|
|
SSBC-01 |
1.7 |
25 |
White |
26-24 (0.25-0.34) |
100 |
|
SSBC-02 |
2.7 |
40 |
Red |
22-18 (0.50-1.00) |
100 |
|
SSBC-03 |
4.5 |
40 |
Blue |
16-14 (1.50-2.50) |
50 |
|
SSBC-04 |
6.0 |
40 |
Yellow |
12-10 (4.00-6.00) |
25 |
