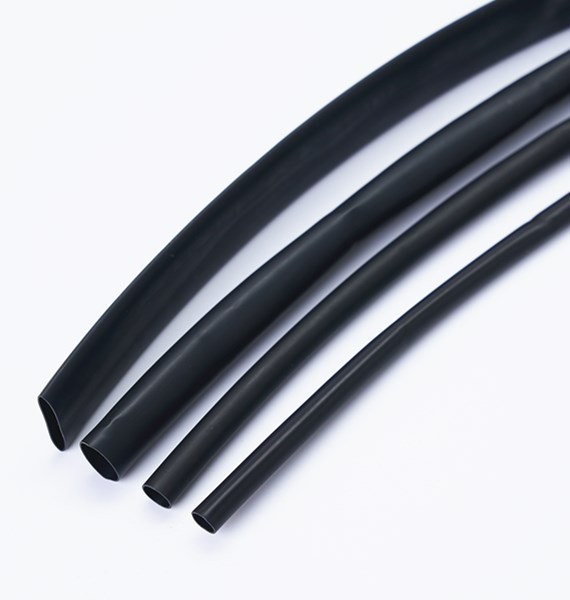

Viton Heat Shrink Tubing
Insutek KV-200 series FKM & Viton Heat Shrink Tubing is made of fluororubber and elastomer after radiation modification. It can be used at 200 °C for along time. It has great excellence in high temperature resistance, fuel, lubricant, acid and other solvent resistance to prevent wire harnesses, cables or coated components from being damaged in high temperature or particularly harsh environments, which is quite widely used in aerospace, locomotive, shipbuilding area.
Insutek KV-200 series FKM & Viton Heat Shrink Tubing is made of fluororubber and elastomer after radiation modification. It can be used at 200 °C for along time. It has great excellence in high temperature resistance, fuel, lubricant, acid and other solvent resistance to prevent wire harnesses, cables or coated components from being damaged in high temperature or particularly harsh environments, which is quite widely used in aerospace, locomotive, shipbuilding area.
Features
Operate Temperature: –55 to 200°C
Shrink Ratio: 2:1
Voltage Rating: 600V
SAE-AMS23053/13
UL VW-1
|
Item |
Spec |
Test method |
|
Tensile strength(Mpa) |
≥12MPa |
ASTM D 638 |
|
Elongation at break |
≥250% |
ASTM D 638 |
|
Elongation after aging |
≥200% |
250℃×168h |
|
Flame Retardancy |
Self-extinguishing within 15 seconds |
ASTM D 2671 |
|
Longitudinal Change |
±10% |
ASTM D 2671 |
|
Heat shock |
No Cracking |
300℃×4h |
|
Dilectric Strength |
≥12kV/mm |
ASTM D 2671 |
|
Volume resistance |
≥109Ω.cm |
ASTM D 876 |
|
Size |
AS SUPPLIED |
AFTER RECOVERY |
Standard package |
||
|
Inch |
mm |
INTERNAL DIAMETER (mm) |
INTERNAL DIAMETER(mm) |
WALL THICKNESS(mm) |
Spool Length (m/spool) |
|
1/8 |
3.2 |
3.2 |
1.6 |
0.76 |
50 |
|
3/16 |
4.8 |
4.8 |
2.4 |
0.89 |
50 |
|
1/4 |
6.4 |
6.4 |
3.2 |
0.89 |
50 |
|
3/8 |
9.5 |
9.5 |
4.8 |
0.89 |
50 |
|
1/2 |
12.7 |
12.7 |
6.4 |
0.89 |
50 |
|
3/4 |
19.1 |
19.1 |
9.5 |
1.07 |
30 |
|
1 |
25.4 |
25.4 |
12.7 |
1.25 |
30 |
|
1-1/2 |
38.1 |
38.1 |
19 |
1.4 |
15 |
|
2 |
50.8 |
50.8 |
25.4 |
1.65 |
10 |
