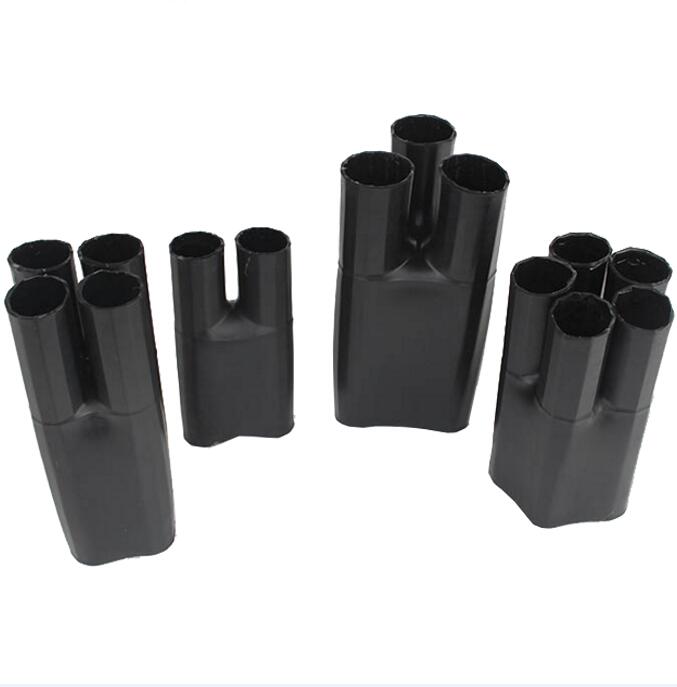

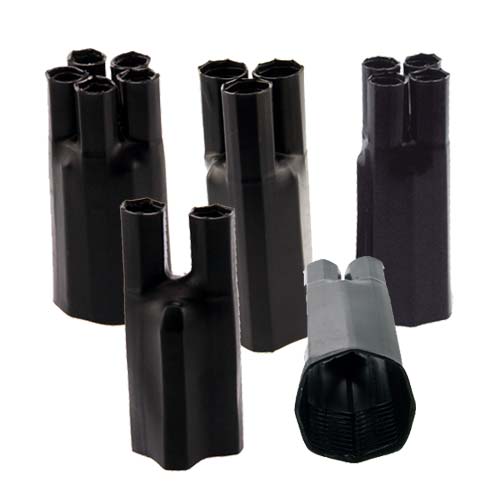

Heat Shrink Breakout Boot
Insutek KHB series of Heat Shrink Breakout boot, is made from radiated polyolfine with inner adhesive, it can provide strain relief and environmental/mechanical protection for breakouts in multi-conductor armored or cable terminations up to 36KV.
Insutek KHB series of Heat Shrink Breakout boot, is made from radiated polyolfine with inner adhesive, it can provide strain relief and environmental/mechanical protection for breakouts in multi-conductor armored or cable terminations up to 36KV.
Features:
Minimum shrink temperature: 110℃
Minimum fully recovery temperature: 130℃
|
Properties |
Test Method |
Typical Value |
|
Tensile strength |
ASTM D 2671 |
12MPa min. |
|
Ultimate elongation |
ASTM D 2671 |
200% min. |
|
Volume resistivity |
IEC 93 |
1014Ω.cm min. |
|
Dielectric strength |
IEC 60243 |
12kV/mm(1.0mm) min. |
|
Water absorption |
ISO 62 |
0.5% max. |
|
Heat shock at 225℃/4hrs |
ASTM D 2671 |
No cracking, dropping |
|
Density |
ASTM D 792 |
1.0~1.1g/cm3 |

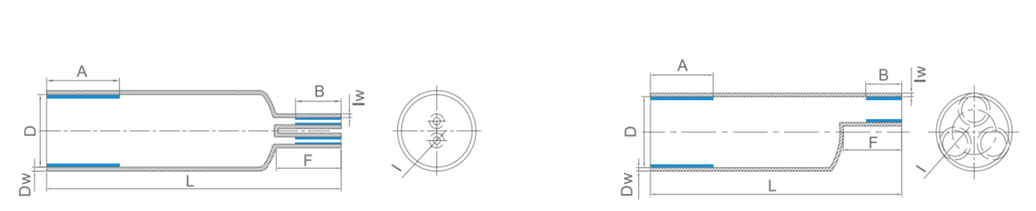

| Size (mm) | D (mm) | I (mm) | Supplied Length(mm) | Recovered length(mm) | Recovered Wall Thickness (mm) | |||||
| As supplied (Min.) | After Recovery (Max.) | As supplied (Min.) | After Recovery (Max.) | Body Total Length | Finger Length | body total length | finger length | Dw | Iw | |
| 2 Cores cable breakout | ||||||||||
| KHB2C-22/8 | 22 | 12 | 11 | 3.5 | 55 | 16 | 60 | 18 | 2.2 | 1.8 |
| KHB2C-30/14 | 30 | 14 | 14 | 4.5 | 80 | 22 | 84 | 21 | 2.6 | 2.4 |
| KHB2C 40/16 | 40 | 16 | 15 | 5 | 100 | 30 | 110 | 30 | 2.2 | 2.2 |
| KHB2C-60/23 | 60 | 23 | 25 | 8 | 95 | 21 | 105 | 25 | 2.4 | 2.4 |
| KHB2C-90/60 | 90 | 60 | 30 | 8 | 165 | 45 | 170 | 48 | 3.0 | 3.0 |
| KHB2C-160/ 90 | 160 | 92 | 50 | 30 | 290 | 170 | 310 | 160 | 4.5 | 4.5 |
| 3 Cores cable breakout | ||||||||||
| KHB3C-38/16 | 38 | 16 | 315 | 5 | 100 | 35 | 110 | 30 | 2.3 | 2.0 |
| KHB3C-60/25 | 60 | 25 | 26 | 8 | 170 | 40 | 175 | 45 | 3.2 | 2.8 |
| KHB3C-70/28 | 70 | 28 | 32 | 10 | 175 | 45 | 180 | 45 | 3.3 | 3.0 |
| KHB3C-80/38 | 80 | 38 | 34 | 16 | 190 | 50 | 195 | 55 | 3.5 | 3.3 |
| KHB3C-110/50 | 110 | 50 | 46 | 19 | 220 | 55 | 230 | 60 | 3.8 | 3.5 |
| KHB3C-125/57 | 125 | 57 | 55 | 20 | 220 | 60 | 240 | 68 | 3.5 | 3.2 |
| KHB3C-140/70 | 140 | 70 | 62 | 26 | 250 | 58 | 270 | 68 | 3.9 | 3.6 |
| KHB3C-170/77 | 170 | 77 | 75 | 28 | 250 | 55 | 270 | 68 | 3.9 | 3.6 |
| 3 Cores cable breakout | ||||||||||
| KHB4C-40/15 | 40 | 15 | 12 | 5 | 95 | 23 | 100 | 24 | 2.2 | 2.0 |
| KHB4C-55/21 | 55 | 21 | 20 | 5.5 | 145 | 40 | 150 | 42 | 2.9 | 2.7 |
| KHB4C-65/26 | 65 | 26 | 25 | 7.5 | 170 | 45 | 180 | 50 | 3.3 | 3.1 |
| KHB4C-75/26 | 75 | 26 | 28 | 7.5 | 180 | 45 | 190 | 50 | 3.3 | 3.1 |
| KHB4C-82/37 | 82 | 37 | 30 | 11 | 170 | 46 | 180 | 45 | 3.3 | 3.0 |
| KHB4C-90/37 | 90 | 37 | 32 | 11 | 170 | 46 | 180 | 50 | 3.3 | 3.0 |
| KHB4C-100/47 | 100 | 47 | 38 | 12 | 180 | 55 | 190 | 55 | 3.9 | 3.3 |
| KHB4C-125/52 | 125 | 52 | 50 | 15 | 215 | 50 | 240 | 68 | 4.0 | 4.0 |
| KHB4C-160/70 | 160 | 70 | 64 | 20 | 240 | 50 | 270 | 68 | 3.8 | 3.7 |
| 5 Cores cable breakout | ||||||||||
| KHB5C-40/19 | 40 | 19 | 13 | 4.5 | 90 | 20 | 85 | 20 | 2.5 | 2.2 |
| KHB5C-55/24 | 55 | 24 | 18 | 5.5 | 145 | 36 | 150 | 40 | 3.0 | 2.6 |
| KHB5C-80/33 | 80 | 33 | 26 | 8 | 160 | 46 | 175 | 50 | 3.2 | 3.0 |
| KHB5C-100/42 | 100 | 42 | 35 | 10 | 180 | 52 | 195 | 55 | 3.5 | 3.2 |
l* = The length of L as supplied
f* = The length of F as supplied
a* = Inner diameter as supplied
b* = Inner diameter after fully recovered
