SGT Cable
SGT Cable
Description

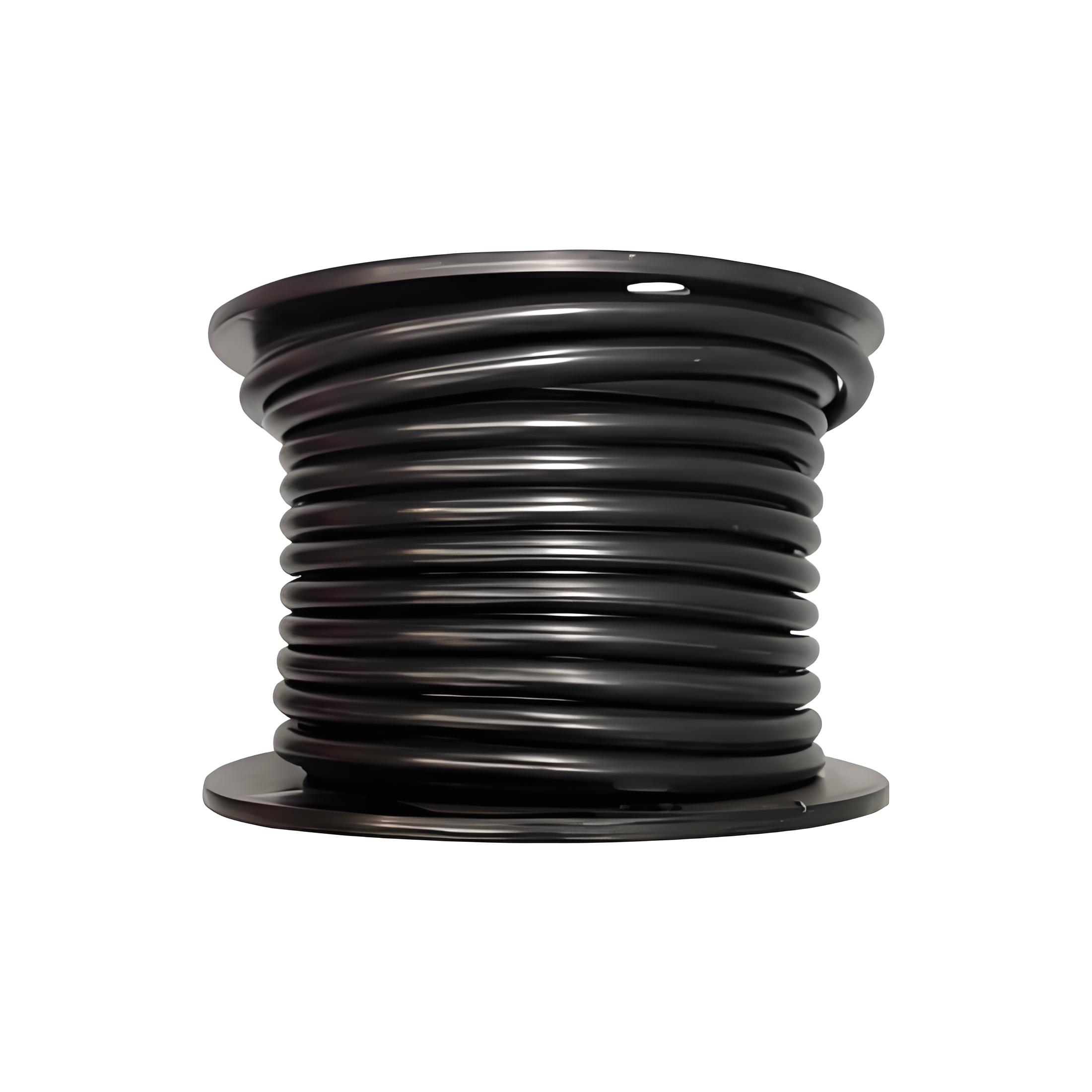

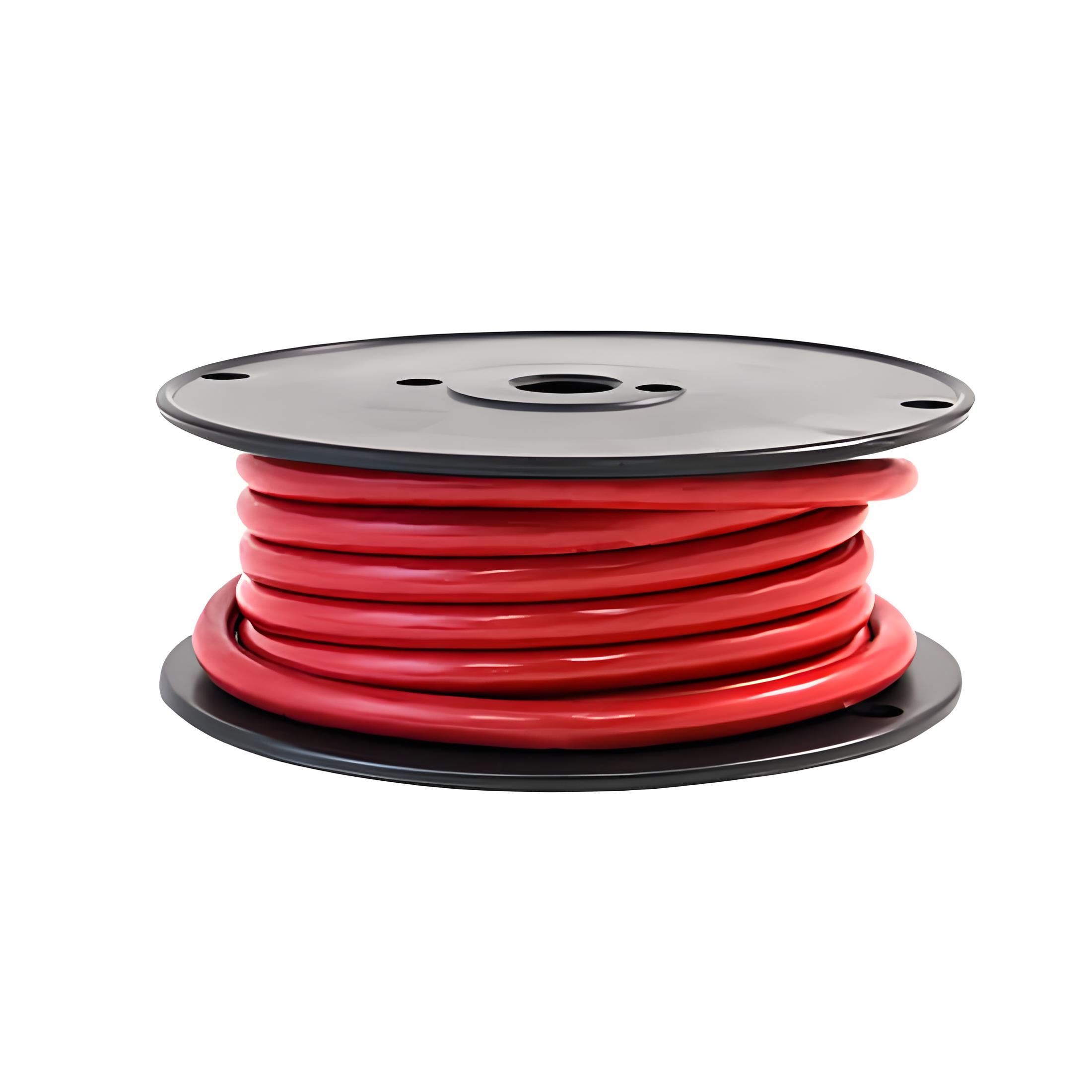

Insutek SGT series, is PVC insulated, single-core cable, which is used for automotive starters or battery grounds.
Product Description
Parameter
Features:
Conductor: Bare Copper
Insulation: PVC
Rated Voltage: 60V DC
Rated temperature: -40～80℃, maximum 105℃
Standard: SAE J1127
| Conductor Construction | Insulation | Cable | |||||
| Size | Nominal cross- section(mm2) | No. and Dia. of Wires | Diameter | Thickness Wall nom. | Overall Diameter max. | Weight Approx. | |
| 6 | 1 x 13.48 | 266/0.26 | 4.12 | 1.52 | 6.58 | 152 | |
| 4 | 1 x 21.28 | 420/0.26 | 6.72 | 1.65 | 9.40 | 243 | |
| 2 | 1 x 33.70 | 665/0.26 | 8.58 | 1.65 | 11.26 | 368 | |
| 1 | 1 x 42.36 | 836/0.26 | 9.77 | 1.65 | 12.45 | 454 | |
| 1/0 | 1 x 53.91 | 1064/0.26 | 11.10 | 1.65 | 13.78 | 568 | |
| 2/0 | 1 x 67.04 | 1323/0.26 | 12.47 | 1.65 | 15.15 | 697 | |
| 3/0 | 1 x 84.42 | 1666/0.26 | 14.10 | 1.98 | 17.30 | 886 | |
| 4/0 | 1 x 106.76 | 2107/0.26 | 15.97 | 1.98 | 19.17 | 1105 | |
