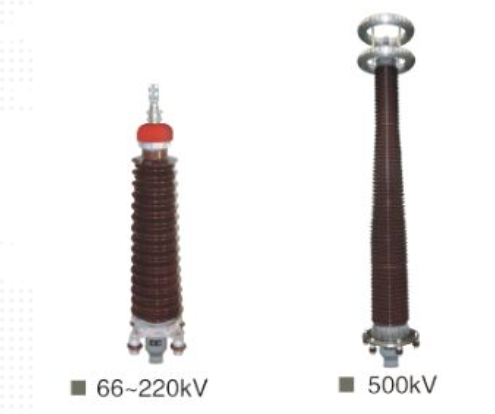

66-500kV & 72.5-550kV Porcelain Cable Termination
72.5-550kV Porcelain Cable Termination
The Porcelain Cable Termination, is mainly used in the field of high-voltage power transmission, the connection between high-voltage power cables and electrical equipment or overhead lines.
Features:
1. The termination stress cone is injection molded with imported EPDM rubber, supported by a spring cone, and isolated from the insulation filler by a stress cone cover structure, overcoming the drawbacks of elastic relaxation caused by material aging and poor contact between the stress cone and the outer semiconducting layer of the cable, which ensures long-term stable operation;
2. The termination adopts a multi-layer sealing structure to prevent water and oil leakage during operation;
3. Various size of rain shed structure design, has good anti fouling and flashover characteristics;
4. Excellent weather resistance, leak resistance, electrical corrosion resistance, and hydrophobicity.
5. Type Test according to IEC60267, IEC60840
Product Type /Application Range
Max System Voltage: 72.5kV(Rated 48/66kV), Cable cross section: 150-1600 mm²
Max System Voltage: 126kV(Rated 64/110kV), Cable cross section: 240-2000 mm²
Max System Voltage: 145kV(Rated 76/138kV, Cable cross section: 240-2000 mm²
Max System Voltage: 252kV(Rated 127/220kV) Cable cross section: 400-2500 mm²
Max System Voltage: 362kV(Rated 190/330kV) Cable cross section: 800-2500 mm²
Max System Voltage: 550kV(Rated 290/500kV) Cable cross section: 800-2500 mm²

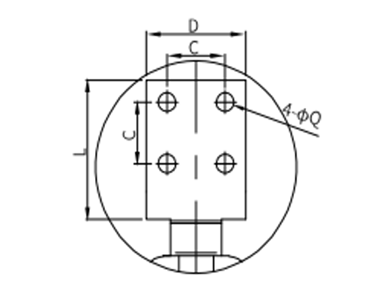

| Max System Voltage | Cross section | Lug Hole Distance(mm) | Connection Hole of Lug Q(mm) | Palm Width of Cable Lug D (mm) | Palm Length of Cable Lug L (mm) |
| 72.5kV | 150~400 mm² | 35 | 14 | 63 | 80 |
| 500~800 mm² | 45 | 14 | 80 | 100 | |
| 1000~1600 mm² | 50 | 17 | 100 | 110 | |
| 126-145kV | 240~400 mm² | 35 | 14 | 63 | 80 |
| 500~800 mm² | 45 | 14 | 80 | 100 | |
| 1000~1600 mm² | 50 | 17 | 100 | 110 | |
| 252kV | 400~800 mm² | 45 | 14 | 80 | 100 |
| 1000~1600 mm² | 50 | 17 | 100 | 110 | |
| 2000~2500 mm² | 50 | 18 | 125 | 140 | |
| 362KV | 800 mm² | 45 | 14 | 63 | 80 |
| 1000~1600 mm² | 50 | 17 | 80 | 100 | |
| 2000~2500 mm² | 50 | 18 | 100 | 110 | |
| 550KV | 800 mm² | 45 | 14 | 80 | 100 |
| 1000~1600 mm² | 50 | 17 | 100 | 110 | |
| 2000~2500 mm² | 50 | 18 | 125 | 140 |

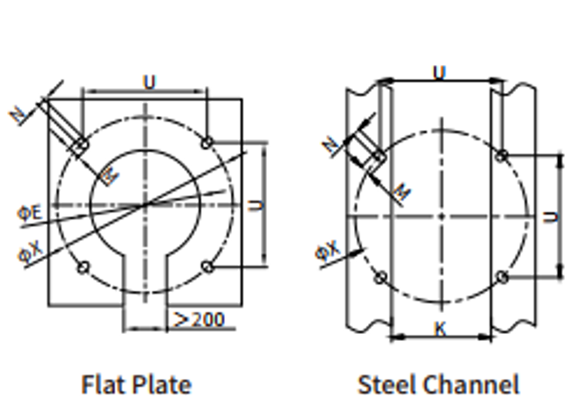

72.5-252 kV
| Max System Voltage | N(mm) | M(mm) | E(mm) | K(mm) | U(mm) | X(mm) |
| 72.5-145kV | 21 | 30 | 289 | 270 | 318 | 450 |
| 252kV | 32 | 40 | 540 | 455 | 566 | 800 |

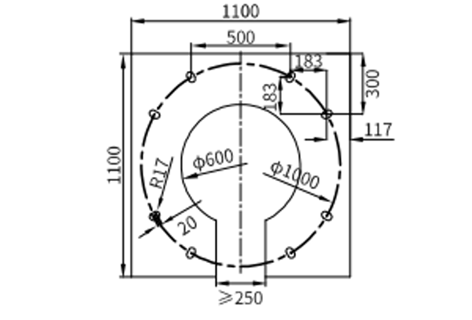

362-550kV

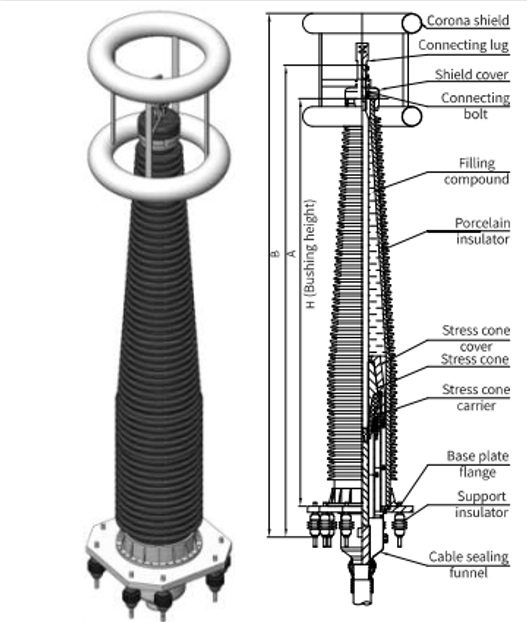

| Max System Voltage | H(mm) | A(mm) | B(mm) |
| 72.5kV | 1050 | 1550 | 1770 |
| 126kV | 1410 | 1910 | 2130 |
| 145kV | 1570 | 2070 | 2290 |
| 252kV | 2700 | 3395 | 3598 |
| 362kV | 4100 | 4715 | 5116 |
| 550kV | 5400 | 6045 | 6416 |
Note: Before ordering， Please provide the Cable configuration and the cross-sectional area of earth wire.
