66-550kV & 72.5-550kV Composite Cable Termination

The Composite Cable Termination, is mainly used in the field of high-voltage power transmission, the connection between high-voltage power cables and electrical equipment or overhead lines.

Inquiry >>

Features

1. The termination stress cone is injection molded with imported EPDM rubber, supported by a spring cone, and isolated from the insulation filler by a stress cone cover structure, overcoming the drawbacks of elastic relaxation caused by material aging and poor contact between the stress cone and the outer semiconducting layer of the cable, which ensures long-term stable operation;

2. The termination adopts a multi-layer sealing structure to prevent water and oil leakage during operation;

3. Various size of rain shed structure design, has good anti fouling and flashover characteristics;

4. The Outer insulation is made of silicone rubber, it has outstanding properties of anti-pollution flashover, anti-UV, anti-aging and anti-explosion while it weighs only 50% of porcelain termination at equivalent voltage level, which provides a more convenient installation

5. Type Test according to IEC60267, IEC60840

Product Type /Application Range

Suitable for III pollution grade and IV pollution grade.
Max System Voltage: 72.5kV(Rated 48/66kV), Cable cross section: 150-1600 mm²
Max System Voltage: 126kV(Rated 64/110kV), Cable cross section: 240-2000 mm²
Max System Voltage: 145kV(Rated 76/138kV, Cable cross section: 240-2000 mm²
Max System Voltage: 252kV(Rated 127/220kV) Cable cross section: 400-2500 mm²
Max System Voltage: 362kV(Rated 190/330kV) Cable cross section: 800-2500 mm²
Max System Voltage: 550kV(Rated 290/500kV) Cable cross section: 800-2500 mm²

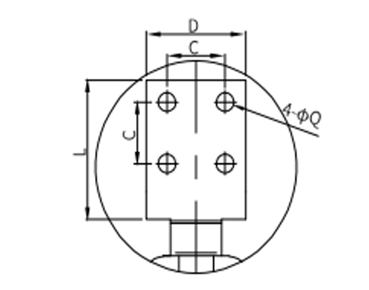

Max System Voltage	Cross section	Lug Hole Distance(mm)	Connection Hole of Lug Q(mm)	Palm Width of Cable Lug D (mm)	Palm Length of Cable Lug L (mm)
72.5kV	150~400 mm²	35	14	63	80
	500~800 mm²	45	14	80	100
	1000~1600 mm²	50	17	100	110
126-145kV	240~400 mm²	35	14	63	80
	500~800 mm²	45	14	80	100
	1000~1600 mm²	50	17	100	110
252kV	400~800 mm²	45	14	80	100
	1000~1600 mm²	50	17	100	110
	2000~2500 mm²	50	18	125	140
362KV	800 mm²	45	14	63	80
	1000~1600 mm²	50	17	80	100
	2000~2500 mm²	50	18	100	110
550KV	800 mm²	45	14	80	100
	1000~1600 mm²	50	17	100	110
	2000~2500 mm²	50	18	125	140

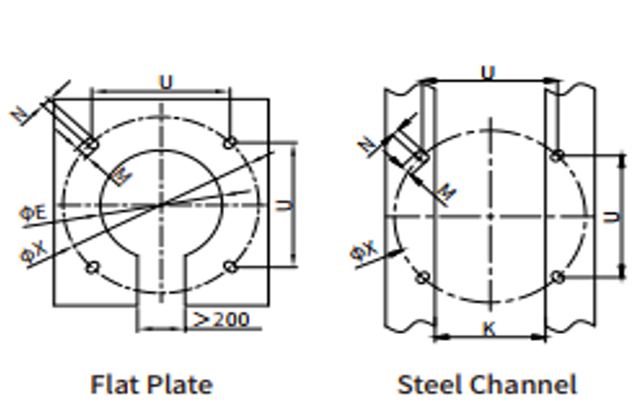

Max System Voltage	N(mm)	M(mm)	E(mm)	K(mm)	U(mm)	X(mm)
72.5~145kV	21	30	289	270	318	450
252kV	32	40	540	455	566	800

72.5-252kV

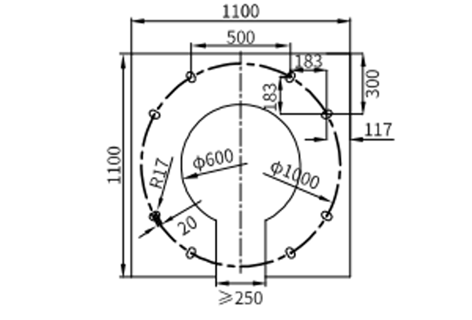

362-550kV

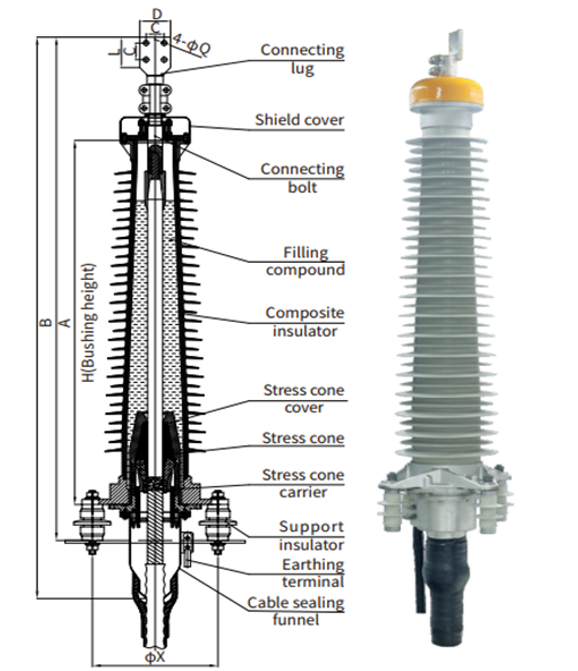

Max System Voltage	H(mm)	A(mm)	B(mm)
72.5kV	1100	1600	1820
126kV	1400	1900	2120
145kV	1580	2080	2300
252kV	2700	3395	3598
362kV	4038	4583	4944
550kV	5380	5295	6286
