66-220 kV & 72.5-252 kV Plug-in GIS Termination
The GIS Termination specially designed to be used in Ring Main Unit, Switchgear, Electrical Cabinets and other equipment, and shall connect to epoxy bushings during installation.
Features:
1. The termination stress cone is made of imported EPDM rubber injection molding, which is supported by a spring cone and pressed tightly on the epoxy bushing, which ensuring long-term safe and stable operation;
2. The termination is a fully dry-type structure, which eliminates leakage problems;
3. It has a compact structure, light weight, and small volume, greatly reducing installation space;
4. Plug-in design, easy to install and maintain;
5. Type tested according to IEC 60804, IEC 60267.
Only for Indoor Application
Max System Voltage: 72.5kV(Rated 48/66kV), Cable cross section: 150-1600 mm²
Max System Voltage: 126kV(Rated 64/110kV), Cable cross section: 240-2000 mm²
Max System Voltage: 145kV(Rated 76/138kV, Cable cross section: 240-2000 mm²
Max System Voltage: 252kV(Rated 127/220kV) Cable cross section: 400-2500 mm²
Max System Voltage: 362kV(Rated 190/330kV) Cable cross section: 800-2500 mm²
Max System Voltage: 550kV(Rated 290/500kV) Cable cross section: 800-2500 mm²

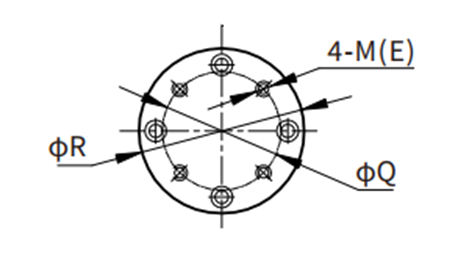

| Max System Voltage | A(mm) | B(mm) | C(mm) | D (mm) | E(mm) | H(mm) | Q(mm) | R (mm) |
| 72.5kV | 300 | 270 | 245 | 185 | 10 | 310/583 | 80 | 110 |
| 126kV | 350 | 320 | 298 | 210 | 10 | 470/757 | 80 | 110 |
| 145kV | 350 | 320 | 298 | 210 | 10 | 470/757 | 80 | 110 |
| 252kV | 500 | 475 | 454 | 340 | 12 | 620/960 | 110 | 150 |
| 252kV | 620 | 582 | 559 | 340 | 12 | 960 | 110 | 200 |
Note:
1. Please provide the Cable configuration and the cross-sectional area of earth wire to us.
2. All GIS termination and GIS composite apparatus is in accordance with IEC 62271 standard. Before ordering, please provide relevant information such as interface height, assembly drawing;
