66 -110kV & 72.5-126kV Dry Type Plug-in Composite Termination
This termination is designed to be used in substation, power plant, power transmission, nuclear power etc.
Features:
1. The termination external insulation adopts silicone rubber rain shed, which has excellent pollution resistance, ultraviolet resistance, aging resistance and explosion-proof performance;
2. The cable processing length is only 1/3 compared to conventional outdoor terminations, which greatly reducing installation time;
3. The connection method between the termination and the cable is plug-in type, easy to install and maintain;
4. Totally Dry structure, which eliminates leakage problems.
5. Type tested according to IEC 60840
Product Type /Application Range
Suitable for IV grade pollution
Max System Voltage: 72.5kV (Rated 48/66kV), Cable cross section: 150-1200 mm²
Max System Voltage: 126kV(Rated 64/110kV), Cable cross section: 240-1200 mm²
| Max System Voltage | Cross section | Lug Hole Distance(mm) | Connection Hole of Lug Q(mm) | Palm Width of Cable Lug D (mm) | Palm Length of Cable Lug L (mm) |
| 72.5kV | 150~400 mm² | 35 | 14 | 63 | 80 |
| 500~800 mm² | 45 | 14 | 80 | 100 | |
| 1000~1600 mm² | 50 | 17 | 100 | 110 | |
| 126-145kV | 240~400 mm² | 35 | 14 | 63 | 80 |
| 500~800 mm² | 45 | 14 | 80 | 100 | |
| 1000~1600 mm² | 50 | 17 | 100 | 110 |

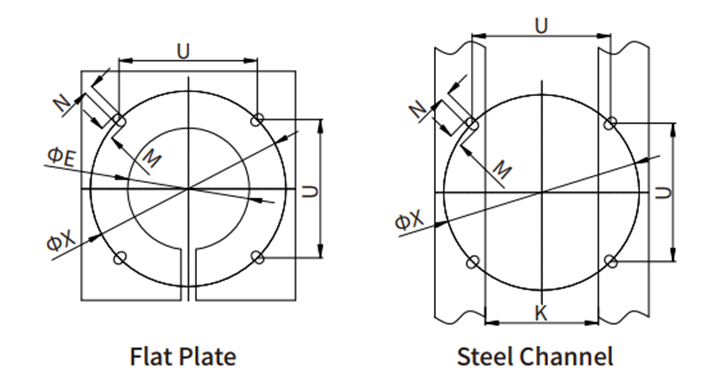

| Max System Voltage | N(mm) | M(mm) | E(mm) | K(mm) | U(mm) | X(mm) |
| 72.5-145kV | 21 | 30 | 289 | 270 | 318 | 450 |
| 252kV | 32 | 40 | 540 | 455 | 566 | 800 |
| Max System Voltage | H(mm) | A(mm) | B(mm) |
| 72.5kV | 1420 | 1715 | 1930 |
| 126kV | 1420 | 1715 | 1930 |
