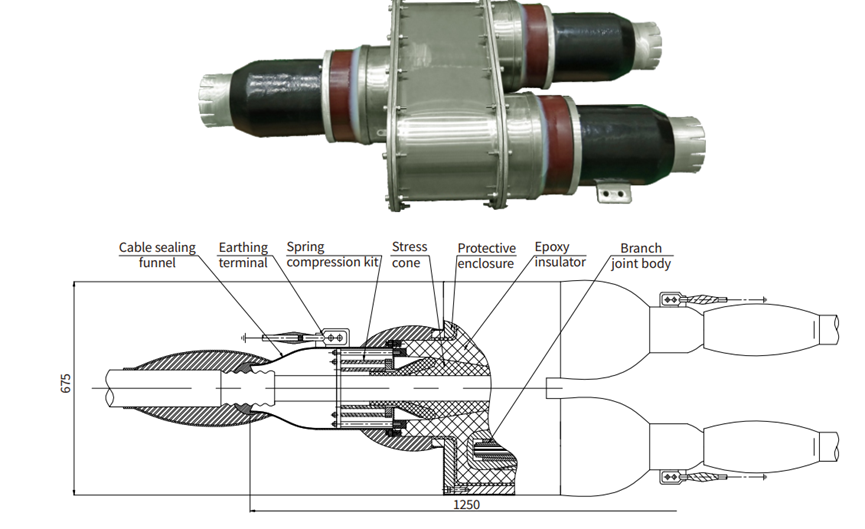

1.     The main body of the branch joint is made of thermosetting resin through vacuum injection molding, which eliminates the risk of oil leakage accidents;

2.     One-Piece Design, excellent waterproof, moisture-resistant property, and capable of withstanding mechanical stress damage, which ensure stable operation in harsh environment.

3. Entirely pre-fabricated by factory. No fillers or insulating gases is needed during installation

Max System Voltage: 72.5kV(Rated 48/66kV), Cable cross section: 150-1600 mm²

Max System Voltage: 126kV(Rated 64/110kV), Cable cross section: 240-2000 mm²

Max System Voltage: 145kV(Rated 76/138kV, Cable cross section: 240-2000 mm²
