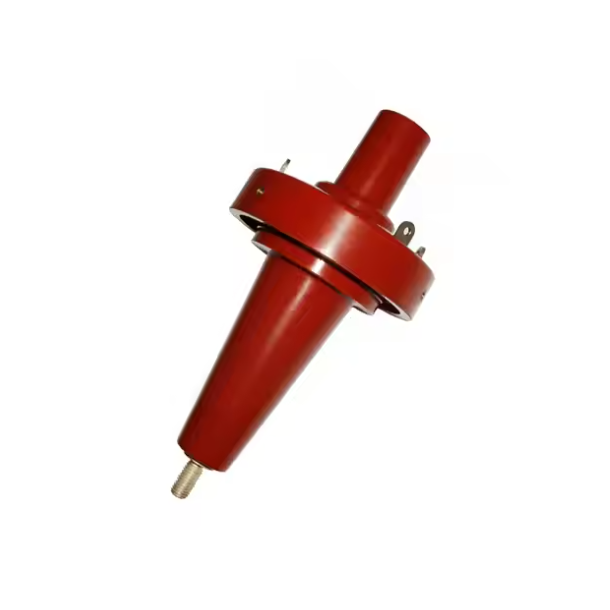

24kV 250A plug in bushing
- For oil-insulated (R-temp, hydrocarbon, or silicon), apparatus, including switchgear, transformer, and capacitors.
- System voltage (Um) of 24 kV.
- Continuous Current 250 A.
- For indoor and outdoor installations.
- Mounting in vertical or horizontal position
STANDARDS
- Meet the interface requirements of CENELEC HD506 S1, ANSI/IEEE 386, DIN 47636
- Has been tested with mating parts to IEC 60502-4 and CENELEC HD 629.1 S1
Related products
Product Description
Electrical Ratings
For oil-insulated (R-temp, hydrocarbon, or silicon), apparatus, including switchgear, transformer, and capacitors.
|
Maximum system voltage (Um) |
24KV |
|
Impulse |
125KV |
|
AC withstand (1 Min) |
54KV |
|
P.D test at 30kV |
<10pC |
|
Continuous current |
250A |
