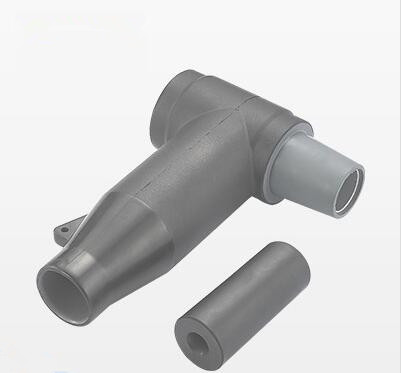

15KV T Type Connector
Insutek AQT-3-15/630 series of T Type Front Connector, AHT-3-15/630 T Type Rear Connector, is suitable for 15kV Electric Distribution System Cable Branch Unit Ring Main Unit and Pad mounted transformer.
Test and Standard:
- Rated Up to 15KV
- Rated current 630A & 1250A
- Standard: IEC 60502.4, EN 50180 & 50181
- Fit for bushing interface Type C
Feature:
- Fully insulated, fully sealed and fully screened, and Touchable
- Excellent stress control
- Easy and flexible installation, No special Tool
Related products
Insutek AQT-3-15/630 series of T Type Front Connector, AHT-3-15/630 T Type Rear Connector, is suitable for 15kV Electric Distribution System Cable Branch Unit Ring Main Unit and Pad mounted transformer.
|
Standard |
IEC 60502 |
|||
|
Voltage classes |
6/10(12)kV |
8.7/15(17.5)kV |
12/20(24)kV |
18/30(36)kV |
|
Partial discharge test at ambient temperature |
10kV, <10pC |
15kV, <10pC |
20kV, <10pC |
30kV, <10pC |
|
AC withstand voltage test |
27kV 5min |
39kV 5min |
54kV 5min |
81kV 5min |
|
Impulse voltage withstand |
±75kV each polarity 10 times |
±95kV each polarity 10 times |
±125kV each polarity 10 times |
±170kV each polarity 10 times |
|
Size & Type |
Rated Voltage (KV) |
Rated Current (A) |
Section(mm2) |
|
AQT3-15/□ |
15 |
630 & 1250 |
25~500 |
|
AHT3-15/□ |
15 |
630 & 1250 |
25~500 |
|
Adaptor Diameter |
Cable Core Insulation Diameter Range |
6.35/11(12)KV |
8.7/15(17.5)KV |
|
|
(mm) |
Min(mm) |
Max(mm) |
Cable section (mm2) |
Cable section (mm2) |
|
Φ12 |
Φ13.5 |
Φ16.5 |
25~50 |
25 |
|
Φ14 |
Φ17.0 |
Φ20.0 |
70~95 |
35~70 |
|
Φ18 |
Φ20.5 |
Φ25.0 |
120~185 |
95~150 |
|
Φ22 |
Φ26.0 |
Φ29.0 |
240~300 |
185~240 |
|
Φ27 |
Φ30.5 |
Φ37.0 |
400~500 |
300~500 |
Order Information
Rated Voltage: 15KV □ 24KV □ 33KV □ 36KV □ 40.5KV □
Rated Current: 630A □ 1250A □
Cable Type & Size: 6/10(12)KV □ 6.35/11(12)KV □ 8.7/15(17.5)KV □ 12/20(24)KV □ 12.7/22.2(24)KV □ 18/30(36)KV □ 19/33(36)KV □ 26/35(40.5)KV □ 20.8/36(42)KV □
Conductor Material: Copper □ Aluminum □
Conductor Cross Section Area (mm2): 25 □ 35 □ 50 □ 75 □ 90 □ 120 □ 150 □ 185 □ 240 □
Please type √，after confirm corresponding selection
