Surge Arrester

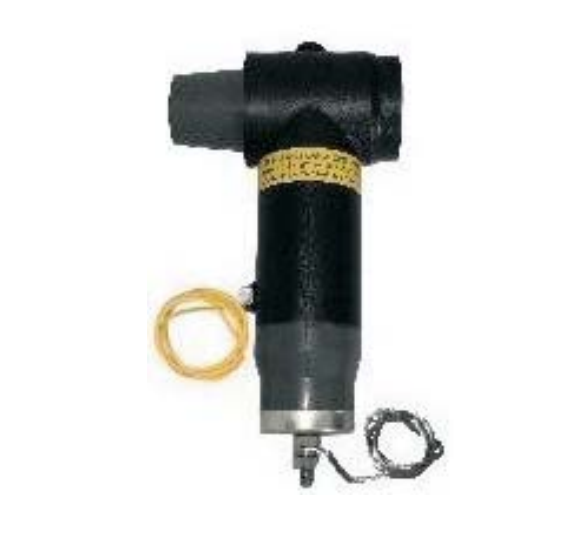

Insutek AHY series of Rear Connector with arrester, is to provide lightning protection, and over-voltage protection, which can effectively ensure the safe operation of power grids.
Feature:
- Rear connector with arrester protects electric apparatus . from lightning and over-voltage.
- Arrester is adopted special explosion-protective separable device.
- The arrester can keep in good operation under the condition of broken because of longtime aging or thunder lightning strike.
- Protect the arrester from explosion or permanent earthing fault.
- Guarantee the grid running safely.
Related products
Insutek AHY series of Rear Connector with arrester, is to provide lightning protection, and over-voltage protection, which can effectively ensure the safe operation of power grids

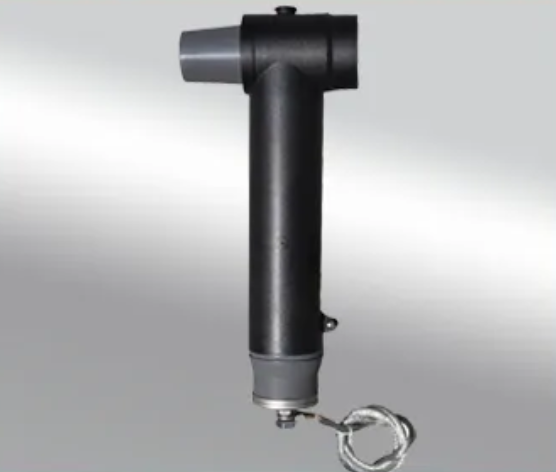

15kV Rear connector w/arrester, Suitable for AQT3-15/630 Front connector
|
Model |
AHY5WZ7-17/45(50) |
|
System nominal voltage |
10kV(r.m.s) |
|
Rated voltage |
17KV |
|
Continuous operation voltage |
13.6KV |
|
5kA lightning impulse current residual voltage |
45KV |
|
At D.C. 1mA voltage UmA |
≥25KV |
|
Leakage current at D.C. 0.75 U1mA |
≤ μ 50 A |
|
2ms Rectangular current withstand |
150A |
|
A.C. withstand voltage test for EPDM housing |
39KV |
24kV Rear connector w/arrester, Suitable for AQT3-24/630 Front connector
|
Model |
AHY5WZ-34/85(34/90) |
|
System nominal voltage |
20kV(r.m.s) |
|
Rated voltage |
24KV |
|
Continuous operation voltage |
27.2KV |
|
5kA lightning impulse current residual voltage |
85KV |
|
At D.C. 1mA voltage UmA |
≥48KV |
|
Leakage current at D.C. 0.75 U1mA |
≤ μ 50 A |
|
2ms Rectangular current withstand |
150A |
|
A.C. withstand voltage test for EPDM housing |
54KV |
36kV Rear connector w/arrester, Suitable for QT3-35(40.5)/630KC series
|
Model |
AHY5WZ3-51/134(127) |
|
Rated voltage |
51KV |
|
Continuous operation voltage |
40.8KV |
|
5kA lightning impulse current residual voltage |
134KV |
|
At D.C. 1mA voltage UmA |
≥73KV |
|
Leakage current at D.C. 0.75 U1mA |
≤ μ 50 A |
|
2ms Rectangular current withstand |
400A(600A) |
