Cold Shrink Termination Kit

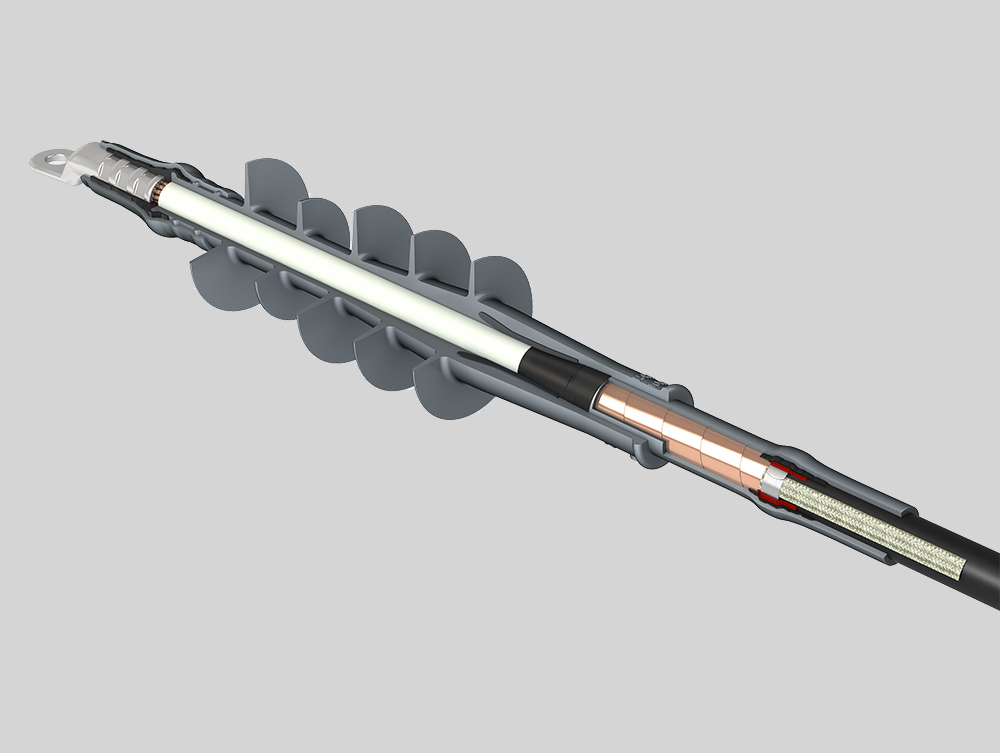

Insutek KCIT/KCOT Cold Shrink Indoor/Outdoor Termination, is specially designed for XLPE or EPR insulated, 1 or 3 cores cables up to 36kV.
Features:
High mechanical strength
Wide cross section range suitable for different types of conductors
Compact dimensions
Excellent UV and weathering stability
More than 10 Years of Shelf Life ((-10℃ to 40℃ and ＜ 75% relative humidity)
Passed type test according to IEC 60502
Related products
No data
Insutek KCIT/KCOT Cold Shrink Indoor/Outdoor Termination, is specially designed for XLPE or EPR insulated, 1 or 3 cores cables up to 36kV.
|
Standard |
IEC 60502 |
||||
|
Voltage classes |
6/10(12)kV |
8.7/15(17.5)kV |
12/20(24)kV |
18/30(36)kV |
26/35(40.5)kV |
|
Partial discharge test at ambient temperature |
10kV, <10pC |
15kV, <10pC |
20kV, <10pC |
30kV, <10pC |
45kV, <10pC |
|
AC withstand voltage test |
27kV 5min |
39kV 5min |
54kV 5min |
81kV 5min |
117kV 5min |
|
Impulse voltage withstand |
±75kV each polarity 10 times |
±95kV each polarity 10 times |
±125kV each polarity 10 times |
±170kV each polarity 10 times |
±200kV each polarity 10 times |
6/10(12)kV
|
Indoor Termination |
Outdoor Termination |
Cable Insulation OD(mm) |
Cable Conductor Cross-section(mm²) |
|
1x1 core |
|||
|
KCIT-12-7095-1 |
KCOT-12-7095-1 |
16.5mm—19.7mm |
70mm²--95mm² |
|
KCIT-12-1215-1 |
KCO-12-1215-1 |
19.7mm—23.5mm |
120mm²--150mm² |
|
KCIT-12-1830-1 |
KCO-12-1830-1 |
22.5mm—31.3mm |
185mm²--300mm² |
|
KCIT-12-4063-1 |
KCO-12-4063-1 |
28.9mm—38.0mm |
400mm²--630mm² |
|
1x3 cores |
|||
|
KCIT-12-7095-3 |
KCOT-12-7095-3 |
16.5mm—19.7mm |
70mm²--95mm² |
|
KCIT-12-1215-3 |
KCOT-12-1215-3 |
19.7mm—23.5mm |
120mm²--150mm² |
|
KCIT-12-1830-3 |
KCOT-12-1830-3 |
22.5mm—31.3mm |
185mm²--300mm² |
|
KCIT-12-4063-3 |
KCOT-12-4063-3 |
28.9mm—38.0mm |
400mm²--630mm² |
8.7/15(17.5)kV
|
Indoor Termination |
Outdoor Termination |
Cable Insulation OD(mm) |
Cable Conductor Cross-section(mm²) |
|
1x1 core |
|||
|
KCIT-17.5-2550-1 |
KCOT-17.5-2550-1 |
16.5mm—19.7mm |
25mm²--50mm² |
|
KCIT-17.5-7012-1 |
KCOT-17.5-7012-1 |
19.7mm—23.5mm |
70mm²--120mm² |
|
KCIT-17.5-1530-1 |
KCOT-17.5-1530-1 |
22.5mm—31.3mm |
150mm²--300mm² |
|
KCIT-17.5-4050-1 |
KCOT-17.5-4050-1 |
28.9mm—38.0mm |
400mm²--500mm² |
|
KCIT-17.5-630-1 |
KCOT-17.5-630-1 |
38.0m m—44.1mm |
630mm² |
|
1x3 cores |
|||
|
KCIT-17.5-2550-3 |
KCOT-17.5-2550-3 |
16.5mm—19.7mm |
25mm²--50mm² |
|
KCIT-17.5-7012-3 |
KCOT-17.5-7012-3 |
19.7mm—23.5mm |
70mm²--120mm² |
|
KCIT-17.5-1530-3 |
KCOT-17.5-1530-3 |
22.5mm—31.3mm |
150mm²--300mm² |
|
KCIT-17.5-4050-3 |
KCOT-17.5-4050-3 |
28.9mm—38.0mm |
400mm²--500mm² |
|
KCIT-17.5-630-3 |
KCOT-17.5-630-3 |
38.0mm—44.1mm |
630mm² |
12/20(24)kV
|
Indoor Termination |
Outdoor Termination |
Cable Insulation OD(mm) |
Cable Conductor Cross-section(mm²) |
|
1x1 core |
|||
|
KCIT-24-3550-1 |
KCOT-24-3550-1 |
19.7mm—23.5mm |
35mm²--50mm² |
|
KCIT-24-7015-1 |
KCOT-24-7015-1 |
22.5mm—31.3mm |
70mm²--150mm² |
|
KCIT-24-1840-1 |
KCOT-24-1840-1 |
28.9mm—38.0mm |
185mm²--400mm² |
|
KCIT-24-5063-1 |
KCOT-24-5063-1 |
38.0mm—44.1mm |
500mm²--630mm² |
|
1x3 cores |
|||
|
KCIT-24-3550-3 |
KCOT-24-3550-3 |
19.7mm—23.5mm |
35mm²--50mm² |
|
KCITT-24-7015-3 |
KCOT-24-7015-3 |
22.5mm—31.3mm |
70mm²--150mm² |
|
KCIT-24-1840-3 |
KCOT-24-1840-3 |
28.9mm—38.0mm |
185mm²--400mm² |
|
KCIT-24-5063-3 |
KCOT-24-5063-3 |
38.0mm—44.1mm |
500mm²--630mm² |
18/30(36)kV
|
Indoor Termination |
Outdoor Termination |
Cable Insulation OD(mm) |
Cable Conductor Cross-section(mm²) |
|
1x1 core |
|||
|
KCIT-36-5015-1 |
KCOT-36-5015-1 |
25.9mm—33.9mm |
50mm²--150mm² |
|
KCIT-36-1830-1 |
KCOT-36-1830-1 |
33.7mm—41.3mm |
185mm²--300mm² |
|
KCIT-36-4050-1 |
KCOT-36-4050-1 |
41.3mm—47.0mm |
400mm²--500mm² |
|
KCIT-36-630-1 |
KCOT-36-630-1 |
47.0mm—53.5mm |
630mm² |
|
1x3 cores |
|||
|
KCIT-36-5015-3 |
KCOT-36-5015-3 |
25.9mm—33.9mm |
50mm²--150mm² |
|
KCIT-36-1830-3 |
KCOT-36-1830-3 |
33.7mm—41.3mm |
185mm²--300mm² |
|
KCIT-36-4050-3 |
KCOT-36-4050-3 |
41.3mm—47.0mm |
400mm²--500mm² |
|
KCIT-36-630-3 |
KCOT-36-630-3 |
47.0mm—53.5mm |
630mm² |
26/35(40.5)kV
|
Indoor Termination |
Outdoor Termination |
Cable Insulation OD(mm) |
Cable Conductor Cross-section(mm²) |
|
1x1 core |
|||
|
KCIT-40.5-5015-1 |
KCOT-40.5-5015-1 |
33.7mm—41.6mm |
50mm²--150mm² |
|
KCIT-40.5-1830-1 |
KCOT-40.5-1830-1 |
41.3mm—47.0mm |
185mm²--300mm² |
|
KCIT-40.5-4063-1 |
KCOT-40.5-4063-1 |
47.0mm—53.5mm |
400mm²--630mm² |
|
1x3 cores |
|||
|
KCIT-40.5-5015 |
KCOT-40.5-5015-3 |
33.7mm—41.6mm |
50mm²--150mm² |
|
KCIT-40.5-1830 |
KCOT-40.5-1830-3 |
41.3mm—47.0mm |
185mm²--300mm² |
|
KCIT-40.5-4063 |
KCOT40.5-4063-3 |
47.0mm—53.5mm |
400mm²--630mm² |
Note:
- Before Ordering, please specify the cable structure, and Cable insulation outer diameter
- The above selection is according to the IEC Standard Cable
