Heat Shrink Termination Kit

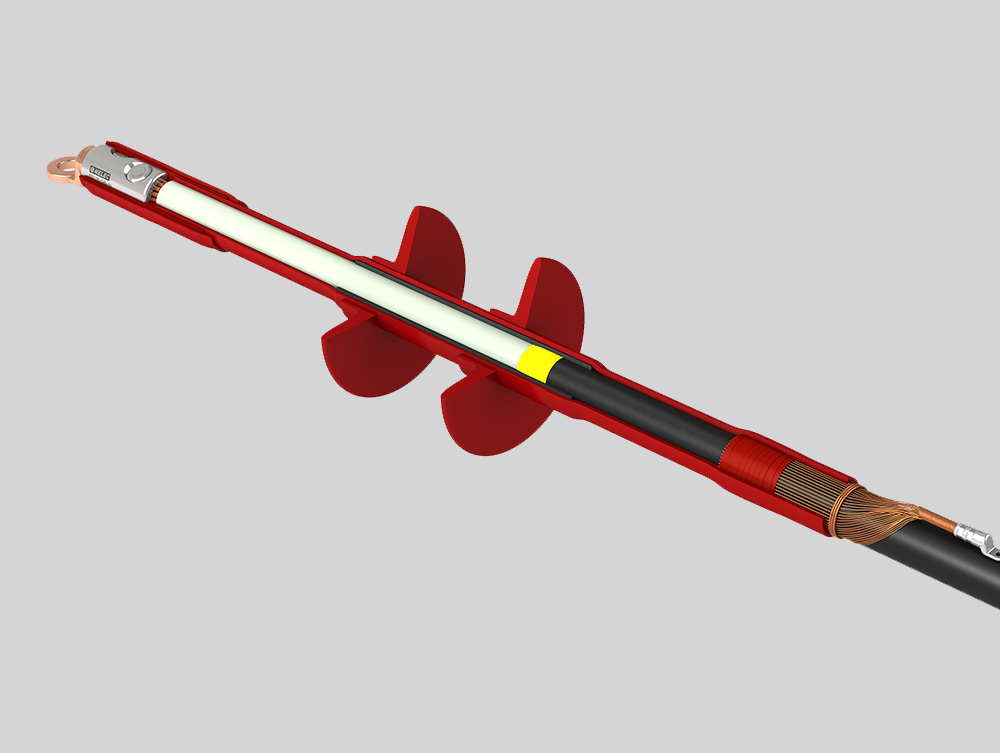

Insutek HSIT/HSOT Heat Shrink Indoor/Outdoor Termination, is specially designed for XLPE or EPR insulated, 1 or 3 cores cables up to 36kV.

Features:

High mechanical strength

Wide cross section range suitable for different types of conductors

Compact dimensions

Excellent UV and weathering stability

More than 10 Years of Shelf Life ((-10℃ to 40℃ and ＜ 75% relative humidity)

Passed type test according to IEC 60502

Product Description

Technical Performance

Selection Table

Insutek HSIT/HSOT Heat Shrink Indoor/Outdoor Termination, is specially designed for XLPE or EPR insulated, 1 or 3 cores cables up to 36kV.

Standard	IEC 60502
Voltage classes	6/10(12)kV	8.7/15(17.5)kV	12/20(24)kV	18/30(36)kV
Partial discharge test at ambient temperature	10kV, <10pC	15kV, <10pC	20kV, <10pC	30kV, <10pC
AC withstand voltage test	27kV 5min	39kV 5min	54kV 5min	81kV 5min
Impulse voltage withstand	±75kV each polarity 10 times	±95kV each polarity 10 times	±125kV each polarity 10 times	±170kV each polarity 10 times

6/10(12) KV

Indoor Termination	Outdoor Termination	Cable Insulation OD(mm)	Cable Conductor Cross-section(mm²)
1x1 core
HSIT-12/1×25-50	HSOT-12/1×25-50	12.0mm-16.0mm	25mm²--50mm²
HSIT-12/1×70-150	HSOT-12/1×70-150	17.6mm-22.8mm	70-mm²--150mm²
HSIT-12/1×185-300	HSOT-12/1×185-300	24.0mm-31.0mm	185mm²--300mm²
HSIT-12/1×400-500	HSOT-12/1×400-500	31.5mm-37.0mm	400mm²--500mm²
HSIT-12/1×630	HSOT-12/1×630	38.0mm-41.9mm	630mm²
1x3 cores
HSIT-12/3×25-50	HSOT-12/3×25-50	12.0mm-16.0mm	25mm²--50mm²
HSIT-12/3×70-150	HSOT-12/3×70-150	17.6mm-22.8mm	70-mm²--150mm²
HSIT-12/3×185-300	HSOT-12/3×185-300	24.0mm-31.0mm	185mm²--300mm²
HSIT-12/3×400-500	HSOT-12/3×400-500	31.5mm-37.0mm	400mm²--500mm²

8.7/15(17.5) KV

Indoor Termination	Outdoor Termination	Cable Insulation OD(mm)	Cable Conductor Cross-section(mm²)
1x1 core
HSIT-17.5/1×25-50	HSOT-17.5/1×25-50	16.0mm-19.5mm	25mm²--50mm²
HSIT-17.5/1×70-150	HSOT-17.5/1×70-150	20.3mm-23.5mm	70-mm²--150mm²
HSIT-17.5/1×185-300	HSOT-17.5/1×185-300	24.0mm-31.0mm	185mm²--300mm²
HSIT-17.5/1×400-500	HSOT-17.5/1×400-500	31.5mm-37.0mm	400mm²--500mm²
HSIT-17.5/1×630	HSOT-17.5/1×630	38.0mm-41.9mm	630mm²
1x3 cores
HSIT-17.5/3×25-50	HSOT-17.5/3×25-50	16.0mm-19.5mm	25mm²--50mm²
HSIT-17.5/3×70-150	HSOT-17.5/3×70-150	20.3mm-23.5mm	70-mm²--150mm²
HSIT-17.5/3×185-300	HSOT-17.5/3×185-300	24.0mm-31.0mm	185mm²--300mm²
HSIT-17.5/3×400-500	HSOT-17.5/3×400-500	31.5mm-37.0mm	400mm²--500mm²

12/20(24) KV

Indoor Termination	Outdoor Termination	Cable Insulation OD(mm)	Cable Conductor Cross-section(mm²)
1x1 core
HSIT-24/1×25-50	HSOT-24/1×25-50	17.5mm-20.3mm	25mm²--50mm²
HSIT-24/1×70-150	HSOT-24/1×70-150	21.5mm-26.5mm	70-mm²--150mm²
HSIT-24/1×185-300	HSOT-24/1×185-300	27.5mm-33.0mm	185mm²--300mm²
HSIT-24/1×400-500	HSOT-24/1×400-500	34.2mm-39.5mm	400mm²--500mm²
HSIT-24/1×630	HSOT-24/1×630	40.5mm-43.0mm	630mm²
1x3 cores
HSIT-24/3×25-50	HSOT-24/3×25-50	17.5mm-20.3mm	25mm²--50mm²
HSIT-24/3×70-150	HSOT-24/3×70-150	21.5mm-26.5mm	70-mm²--150mm²
HSIT-24/3×185-300	HSOT-24/3×185-300	27.5mm-32.8mm	185mm²--300mm²
HSIT-24/3×400-500	HSOT-24/3×400-500	33.5mm-39.5mm	400mm²--500mm²

18/30(36) kV

Indoor Termination	Outdoor Termination	Cable Insulation OD(mm)	Cable Conductor Cross-section(mm²)
1x1 core
HSIT-36/1×50-95	HSOT-36/1×50-95	25.0mm-29.5mm	50mm²--95mm²
HSIT-36/1×120-240	HSOT-36/1×120-240	30.5mm-36.5mm	120mm²--240mm²
HSIT-36/1×300-400	HSOT-36/1×300-400	38.0mm-42.5mm	300mm2--400mm²
HSIT-36/1×500-630	HSOT-36/1×500-630	43.5mm-48.5mm	500mm2--630mm²
1x3 cores
HSIT-36/3×50-95	HSOT-36/3×50-95	25.0mm-29.5mm	50mm²--95mm²
HSIT-36/3×120-240	HSOT-36/3×120-240	30.5mm-36.5mm	120mm²--240mm²
HSIT-36/3×300-400	HSOT-36/3×300-400	38.0mm-42.5mm	300mm2--400mm²

Note:

Before Ordering, please specify the cable structure, and Cable insulation outer diameter
The above selection is according to the IEC Standard Cable
