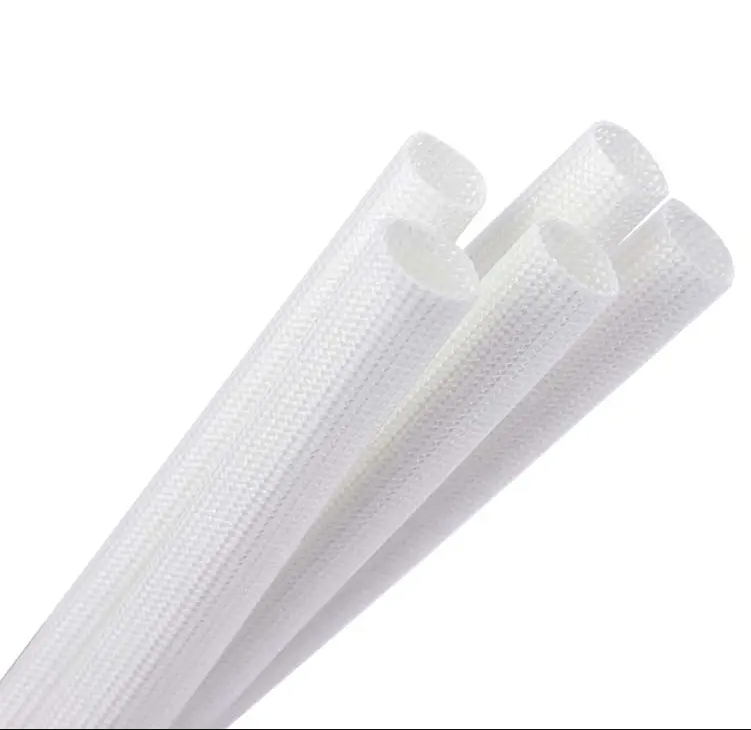

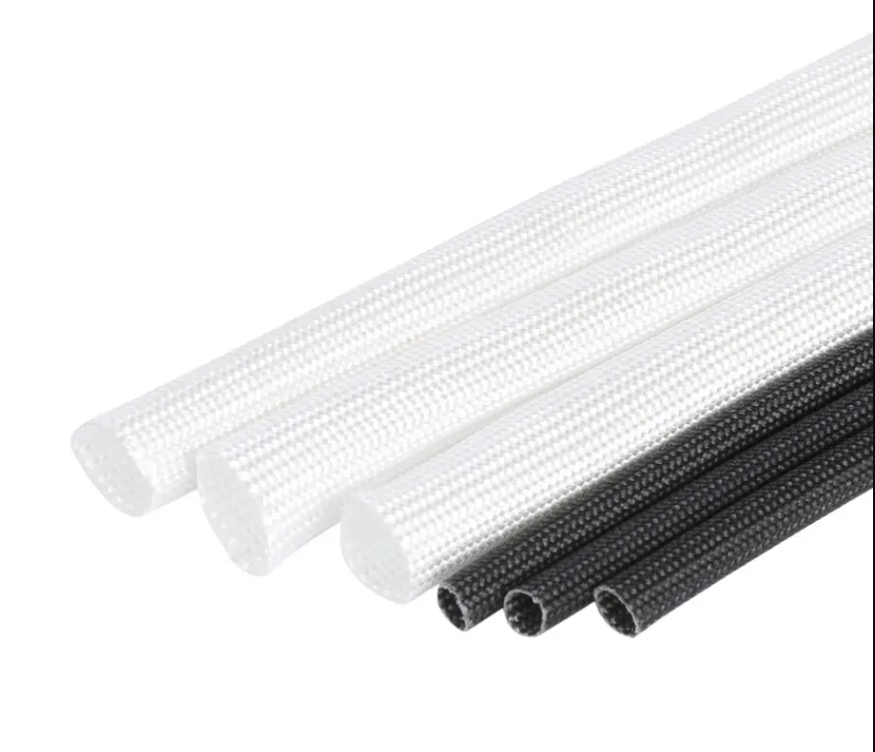

Heat Treated Fiberglass Sleeving
Insutek heat treated fiberglass sleeving is braided from tightly woven, high grade non-alkali fiberglass. It has excellent flexibility, high working temperature resistance, which is mainly used in irons, electrical heating equipments, such as coffee makers, kitchen tools.
Insutek heat treated fiberglass sleeving is braided from tightly woven, high grade non-alkali fiberglass. It has excellent flexibility, high working temperature resistance, which is mainly used in irons, electrical heating equipments, such as coffee makers, kitchen tools.
|
Voltage resistance |
Temperature resistance |
Flame resistance |
|
1000 V |
-60 to 500℃ |
VW-1 |
|
Inner Diameter(mm) |
Wall Thickness(mm) |
||
|
Standard |
Tolerance |
Standard |
Tolerance |
|
HTG 0.5-1.5 |
+0.2,-0.1 |
0.25 |
± 0.05 |
|
HTG 2.0-3.5 |
+0.3,-0.1 |
0.30 |
± 0.05 |
|
HTG 4.0-6.0 |
+0.4,-0.2 |
0.40 |
± 0.10 |
|
HTG 7.0-12.0 |
+0.5,-0.2 |
0.45 |
± 0.15 |
|
HTG 14.0-32.0 |
+0.8,-0.3 |
0.50 |
± 0.15 |
