Self Closing Wrap Sleeving

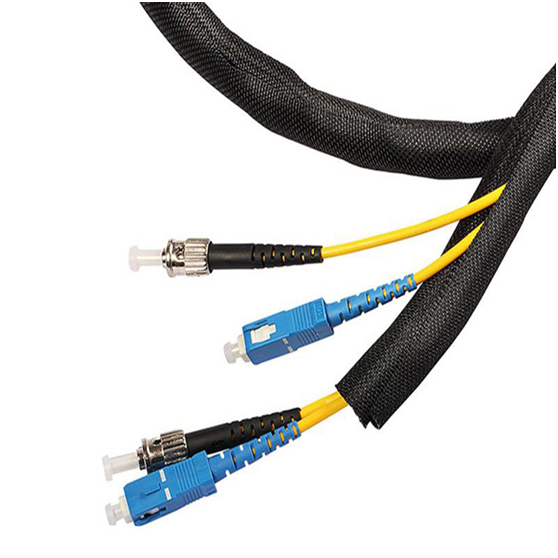

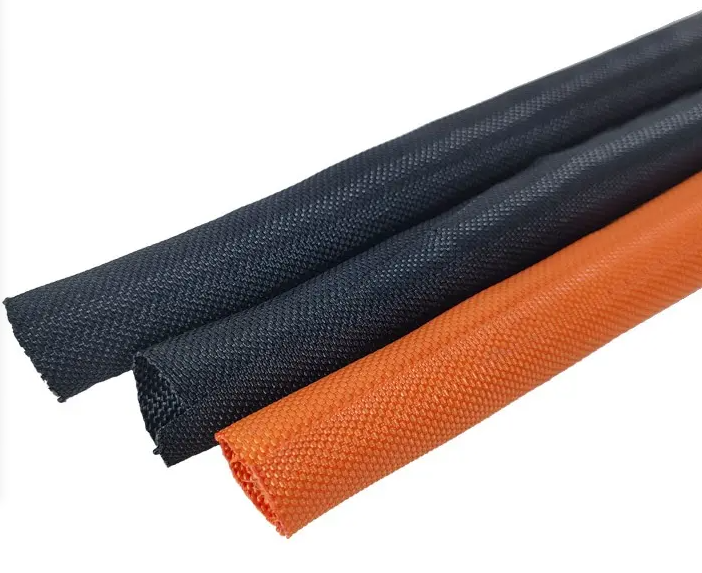

Insutek Self-Closing Woven Wrap Sleeve is a kind of self-wrap sleeving, which is woven from polyester monofilament and multifilament. It is light weight, also easy to removal. This provides convenient application to protect cable assembly, wire harness from abrasion and damage.
Insutek Self-Closing Woven Wrap Sleeve is a kind of self-wrap sleeving, which is woven from polyester monofilament and multifilament. It is light weight, also easy to removal. This provides convenient application to protect cable assembly, wire harness from abrasion and damage.
|
Technical data |
|
|
Material |
Polyester monofilament and multifilament |
|
Operating Temperature |
-50℃-+150℃ |
|
Melt point |
240±10℃ |
|
Flammability |
DIN 5510 |
|
Standard color |
Black |
|
Approval |
ROHS,REACH, |
|
Cutting tool |
Hot knife |
|
Datasheet |
||||
|
Nominal size |
Part No. |
Expanded range(mm) |
Packing |
|
|
Inch |
mm |
Max |
standard spool |
|
|
3/16" |
5 |
KSCS -0.18 |
6 |
100 m |
|
5/16" |
8 |
KSCS -0.31 |
9 |
100 m |
|
3/8" |
10 |
KSCS -0.38 |
11 |
100 m |
|
1/2" |
13 |
KSCS -0.50 |
14 |
50 m |
|
5/8" |
16 |
KSCS -0.62 |
17 |
50 m |
|
3/4" |
19 |
KSCS -0.75 |
20 |
25 m |
|
1" |
25 |
KSCS -1.00 |
27 |
25 m |
|
1 1/4" |
32 |
KSCS -1.25 |
34 |
25 m |
|
1 1/2" |
38 |
KSCS -1.50 |
40 |
25 m |
