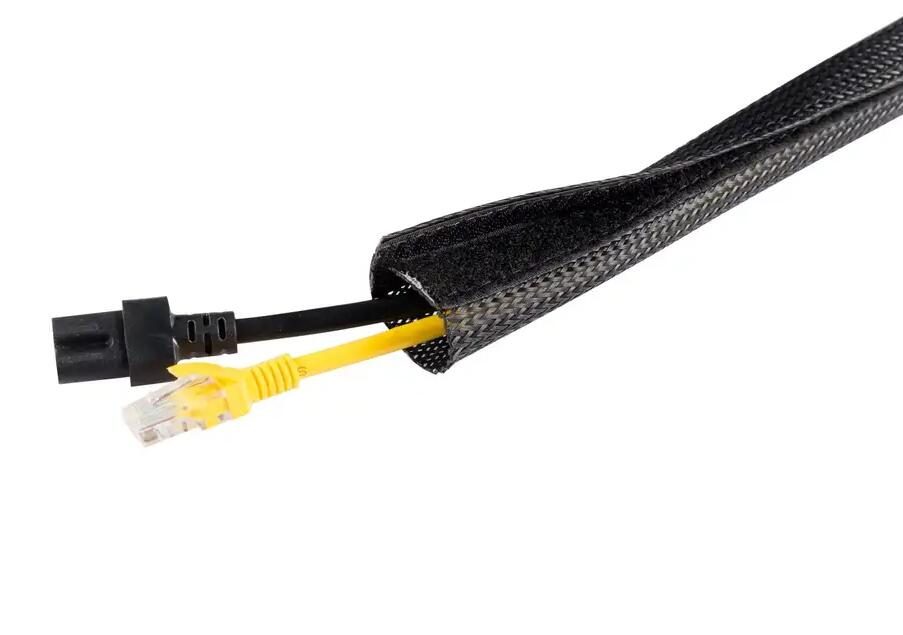

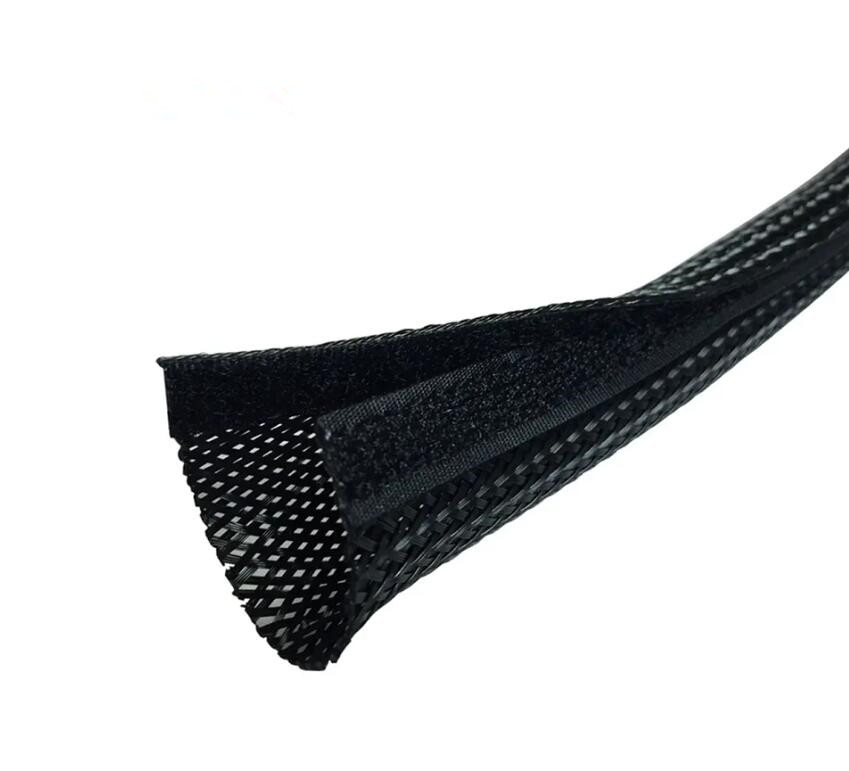

Velcro Braided Sleeving
Insutek Velcro Braided Sleeve is made of polyester single filament and Velcro stitched together. It has good heat dissipation, flexibility, fire resistance, abrasion resistance. The zipper structure is conducive to the protection or reinstallation of the internal wiring harness. This product are widely used in the sorting and protection of wiring harness in industries such as A/V wire, indoor heater power line, computer or TV external connection line, etc.
Insutek Velcro Braided Sleeve is made of polyester single filament and Velcro stitched together. It has good heat dissipation, flexibility, fire resistance, abrasion resistance. The zipper structure is conducive to the protection or reinstallation of the internal wiring harness. This product are widely used in the sorting and protection of wiring harness in industries such as A/V wire, indoor heater power line, computer or TV external connection line, etc.
|
Technical data |
|
|
Material |
Polyester |
|
Operating Temperature |
-50℃-+150℃ |
|
Melt point |
240±10℃ |
|
Flammability |
VW-1 |
|
Standard color |
Black |
|
Approval |
ROHS,REACH, |
|
Cutting tool |
Hot knife |
|
Datasheet |
||||
|
Nominal size |
Part No. |
Expanded range(mm) |
Packing |
|
|
Inch |
mm |
Max |
standard |
|
|
1/2" |
13 |
KCW -0.50 |
10 |
25m/roll |
|
3/4" |
19 |
KCW -0.75 |
15 |
|
|
1 1/4" |
32 |
KCW -1.25 |
20 |
|
|
2" |
51 |
KCW -2.00 |
30 |
|
|
2 1/2" |
64 |
KCW -2.50 |
45 |
|
