Heat Shrink Braided Sleeving

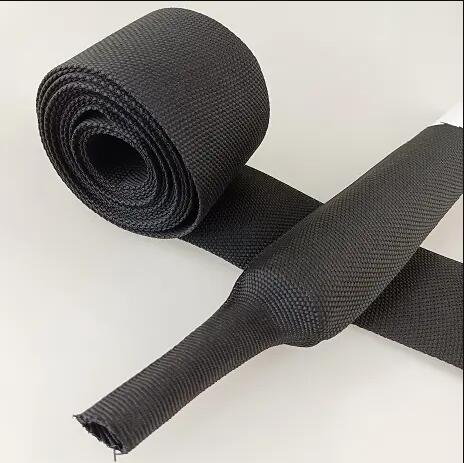

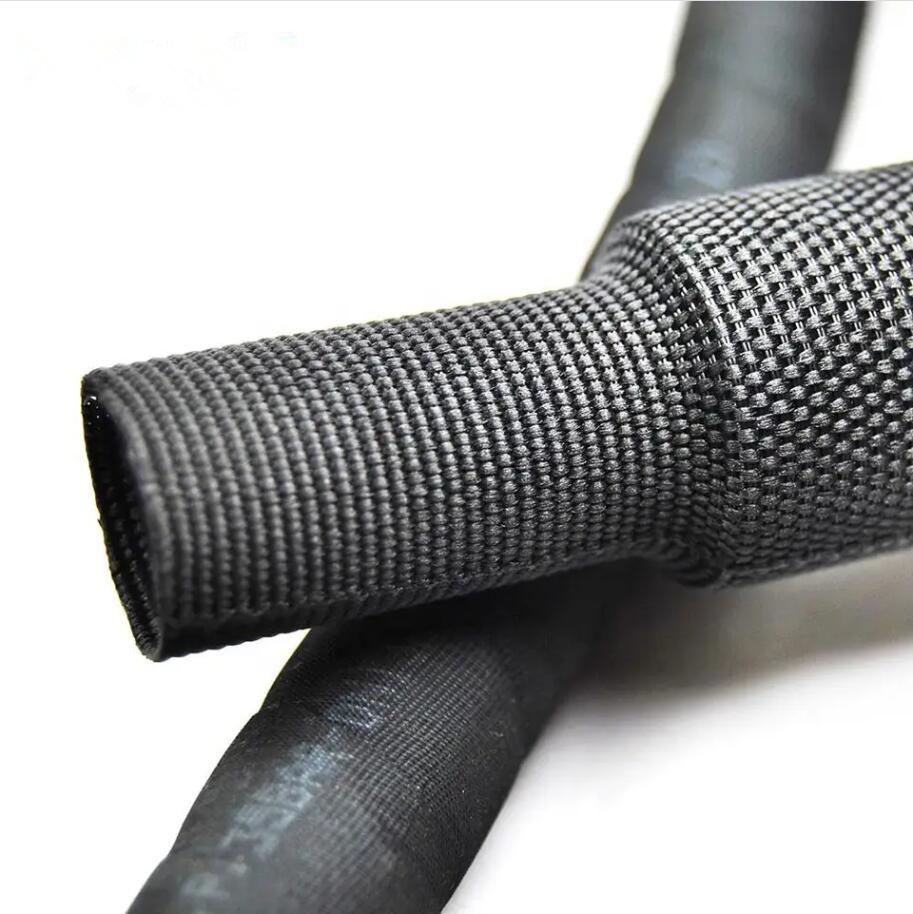

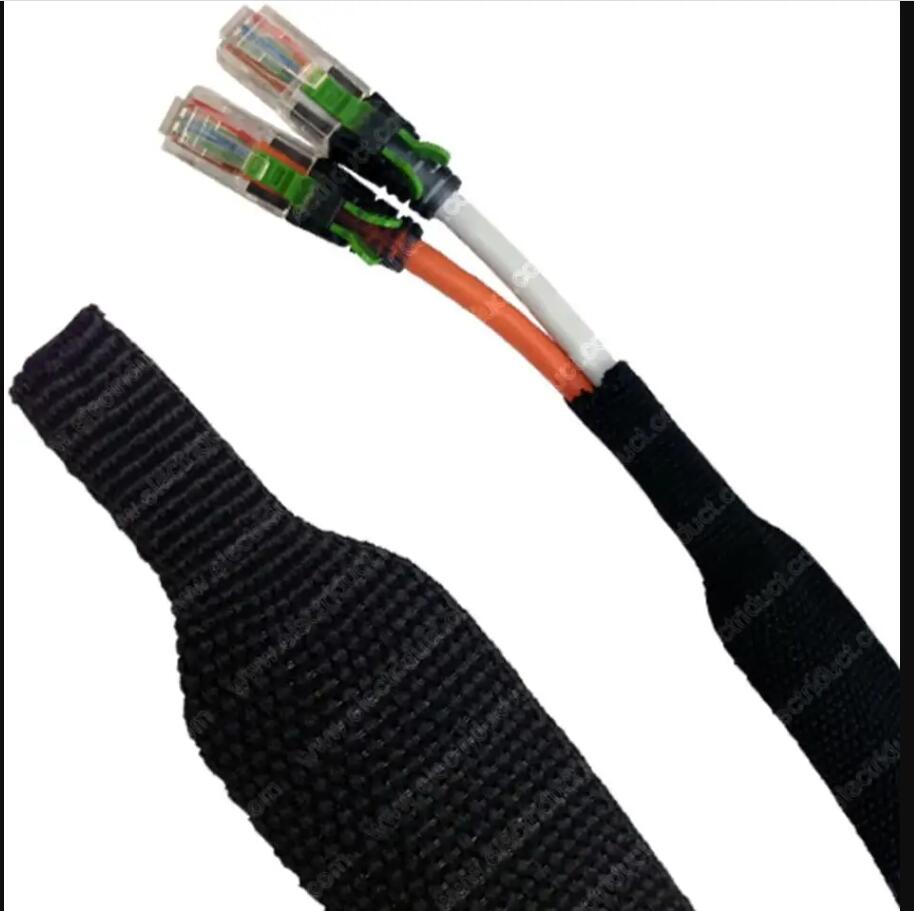

Insutek Heat Shrinkable Braided Sleeve is a special kind of textile sleeving, which combines polyolefin and polyester multifilament. It is super light weight and flexible, with great performance of abrasion resistance, noise reduction.
Insutek Heat Shrinkable Braided Sleeve is a special kind of textile sleeving, which combines polyolefin and polyester multifilament. It is super light weight and flexible, with great performance of abrasion resistance, noise reduction.
|
Technical data |
|
|
Material |
Polyester multifilament and polyolefin |
|
Operating Temperature |
-40℃-+150℃ |
|
Shrink Temperature |
120℃ |
|
Standard color |
Black |
|
Approval |
ROHS,REACH, |
|
Cutting tool |
Hot knife |
|
Datasheet |
|||
|
Part No. |
As Supplied |
After Recovery |
Packing |
|
mm |
mm |
Meter/spool |
|
|
KSBS -6 |
6.0 |
3.0 |
100 |
|
KSBS -8 |
8.0 |
4.0 |
100 |
|
KSBS -10 |
10.0 |
5.0 |
100 |
|
KSBS -12 |
12.0 |
6.0 |
100 |
|
KSBS -16 |
16.0 |
8.0 |
100 |
|
KSBS -20 |
20.0 |
10.0 |
100 |
|
KSBS -25 |
25.0 |
12.5 |
100 |
|
KSBS -30 |
30.0 |
15.0 |
50 |
|
KSBS -35 |
35.0 |
17.5 |
50 |
|
KSBS -40 |
40.0 |
20.0 |
50 |
|
KSBS -45 |
45.0 |
22.5 |
50 |
|
KSBS -50 |
50.0 |
25.0 |
50 |
|
KSBS -60 |
60.0 |
30.0 |
50 |
|
KSBS -70 |
70.0 |
35.0 |
50 |
|
KSBS -80 |
80.0 |
40.0 |
50 |
|
KSBS -90 |
90.0 |
45.0 |
50 |
|
KSBS -100 |
100.0 |
50.0 |
50 |
