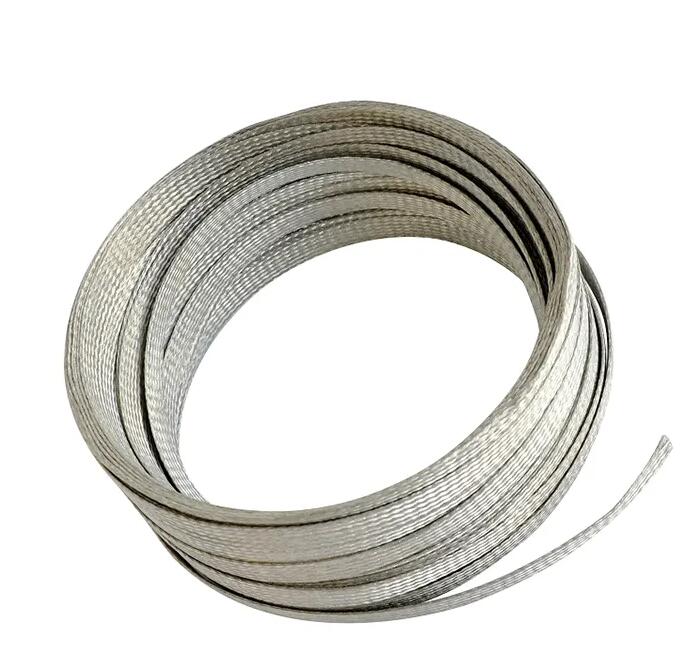

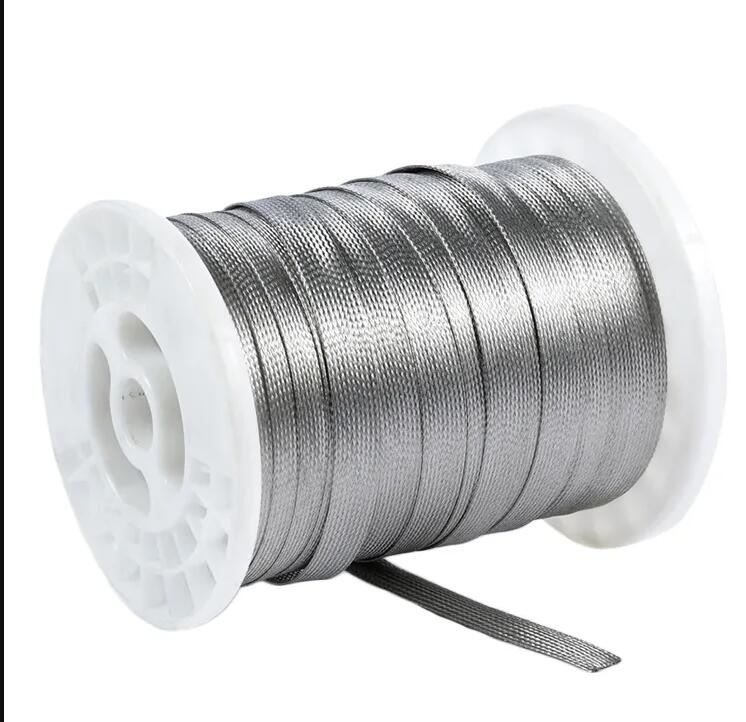

Stainless Steel Braided Sleeving
Insutek KSBS stainless steel braided sleeving is braided with bundles of high quality steel wires. It has High temperature resistance, corrosion resistance, noise reduction, shielding, good filtering performance, high elasticity, long service life, which can be used in Petro-chemical, metallurgy, aerospace, shipbuilding, machinery manufacturing, locomotive etc.
Features:
Material: stainless steel 304 or 316
Diameter: 1MM to 100MM
Color: Silver
Working temperature: -50 to 150℃
Melt Point: 1400℃ for 304 steel, 1100℃ for 316 steel
Insutek KSBS stainless steel braided sleeving is braided with bundles of high quality steel wires. It has High temperature resistance, corrosion resistance, noise reduction, shielding, good filtering performance, high elasticity, long service life, which can be used in Petro-chemical, metallurgy, aerospace, shipbuilding, machinery manufacturing, locomotive etc.
|
Stainless Steel Braided Sleeves Parameters |
|||||
|
Diameter |
Model |
Extension Range |
Packing(m/roll) |
||
|
Inch |
mm |
Min |
Max |
||
|
1/16" |
2 |
KSBS-002 |
2 |
4 |
500 |
|
1/8" |
3 |
KSBS-003 |
3 |
6 |
500 |
|
3/16" |
5 |
KSBS-005 |
5 |
10 |
500 |
|
1/4" |
6 |
KSBS-006 |
6 |
12 |
500 |
|
5/16" |
8 |
KSBS-008 |
8 |
16 |
500 |
|
3/8" |
10 |
KSBS-010 |
10 |
20 |
300 |
|
1/2" |
12 |
KSBS-012 |
12 |
24 |
300 |
|
9/16" |
14 |
KSBS-014 |
14 |
28 |
200 |
|
5/8" |
16 |
KSBS-016 |
16 |
32 |
200 |
|
3/4" |
19 |
KSBS-019 |
19 |
38 |
100 |
|
7/8" |
22 |
KSBS-022 |
22 |
44 |
100 |
|
1" |
25 |
KSBS-025 |
25 |
50 |
100 |
|
19/16" |
30 |
KSBS-030 |
30 |
60 |
100 |
|
11/8" |
35 |
KSBS-035 |
35 |
70 |
100 |
|
52/16" |
40 |
KSBS-040 |
40 |
80 |
100 |
|
2" |
50 |
KSBS-050 |
50 |
100 |
50 |
|
19/8" |
60 |
KSBS-060 |
60 |
120 |
50 |
|
11/4" |
70 |
KSBS-070 |
70 |
140 |
50 |
|
25/8" |
80 |
KSBS-080 |
80 |
160 |
50 |
|
7/2" |
90 |
KSBS-090 |
90 |
180 |
50 |
|
31/8" |
100 |
KSBS-100 |
100 |
200 |
50 |
Remark:
- Diameter refers to the width of flat sleeve pressed under natural condition
- Because of expansion property of sleeve, the following diameter of braided sleeve is regarded the same
16mm=15mm, 19mm=20mm, 32mm=30mm
38mm=40mm, 51mm=50mm, 88mm=90mm
- Product parameters are subject to final confirmation of sample acknowledgement.
