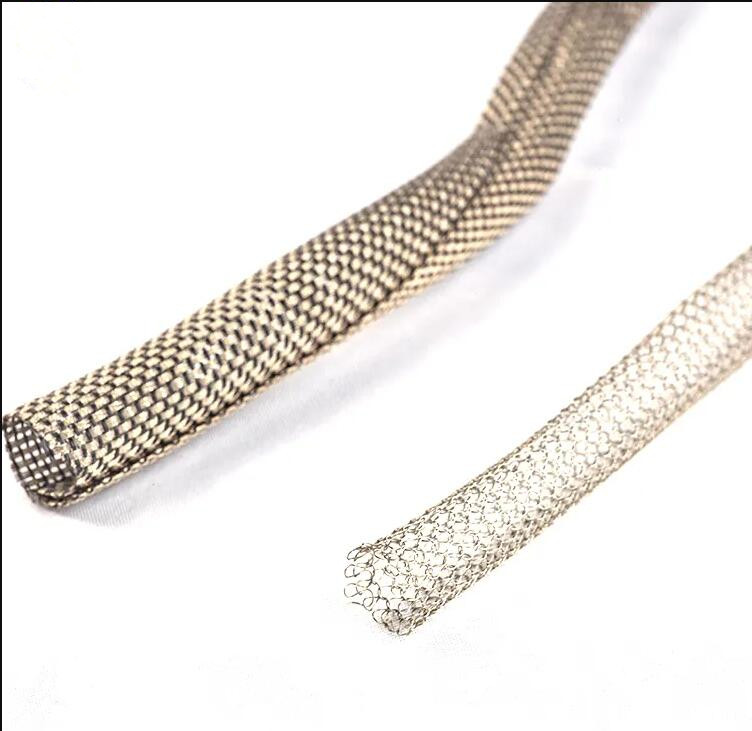

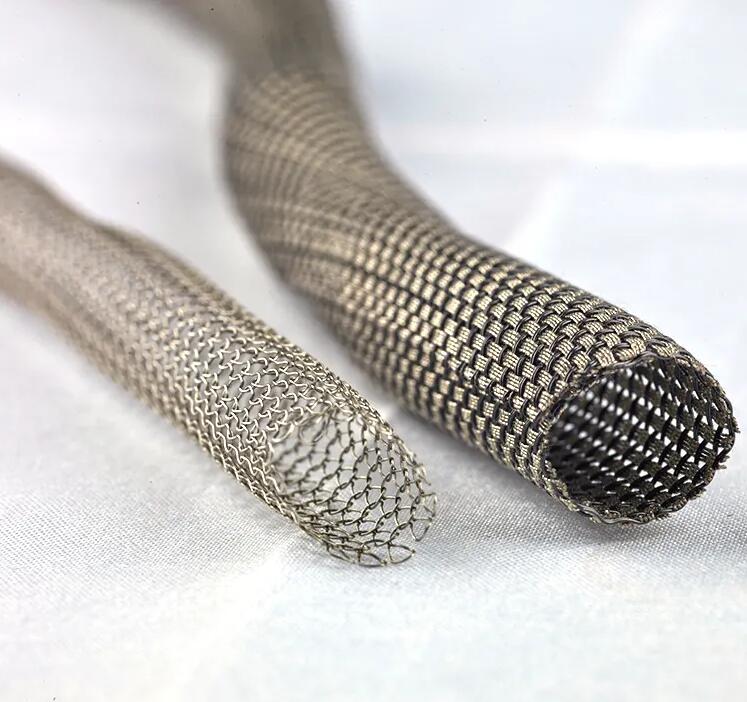

Tinned Copper Braided Sleeving
Insutek KTBS Tinned copper braided sleeving is braided with bundles of high quality oxygen-free copper wires. It has It has igh temperature resistance, high abrasion resistance, conductive, grounding connection, EMI shielding property, which can be used in electronics, electrical appliances, battery cables etc.
Features:
Material: Tinned Copper
Diameter: 1MM to 100MM
Color: Metal color
Working temperature: -50 to 150℃
Melt Point: 1084℃
Insutek KTBS Tinned copper braided sleeving is braided with bundles of high quality oxygen-free copper wires. It has It has igh temperature resistance, high abrasion resistance, conductive, grounding connection, EMI shielding property, which can be used in electronics, electrical appliances, battery cables etc.
|
Tinned Copper Braided Sleeves Parameters |
|||||
|
Diameter |
Model |
Extension Range |
Packing(m/roll) |
||
|
Inch |
mm |
Min |
Max |
||
|
1/16" |
2 |
KTBS-002 |
2 |
4 |
500 |
|
1/8" |
3 |
KTBS-003 |
3 |
6 |
500 |
|
3/16" |
5 |
KTBS-005 |
5 |
10 |
500 |
|
1/4" |
6 |
KTBS-006 |
6 |
12 |
500 |
|
5/16" |
8 |
KTBS-008 |
8 |
16 |
500 |
|
3/8" |
10 |
KTBS-010 |
10 |
20 |
300 |
|
1/2" |
12 |
KTBS-012 |
12 |
24 |
300 |
|
9/16" |
14 |
KTBS-014 |
14 |
28 |
200 |
|
5/8" |
16 |
KTBS-016 |
16 |
32 |
200 |
|
3/4" |
19 |
KTBS-019 |
19 |
38 |
100 |
|
7/8" |
22 |
KTBS-022 |
22 |
44 |
100 |
|
1" |
25 |
KTBS-025 |
25 |
50 |
100 |
|
19/16" |
30 |
KTBS-030 |
30 |
60 |
100 |
|
11/8" |
35 |
KTBS-035 |
35 |
70 |
100 |
|
52/16" |
40 |
KTBS-040 |
40 |
80 |
100 |
|
2" |
50 |
KTBS-050 |
50 |
100 |
50 |
|
19/8" |
60 |
KTBS-060 |
60 |
120 |
50 |
|
11/4" |
70 |
KTBS-070 |
70 |
140 |
50 |
|
25/8" |
80 |
KTBS-080 |
80 |
160 |
50 |
|
7/2" |
90 |
KTBS-090 |
90 |
180 |
50 |
|
31/8" |
100 |
KTBS-100 |
100 |
200 |
50 |
Remark:
- Diameter refers to the width of flat sleeve pressed under natural condition
- Because of expansion property of sleeve, the following diameter of braided sleeve is regarded the same
16mm=15mm, 19mm=20mm, 32mm=30mm
38mm=40mm, 51mm=50mm, 88mm=90mm
- Product parameters are subject to final confirmation of sample acknowledgement.
