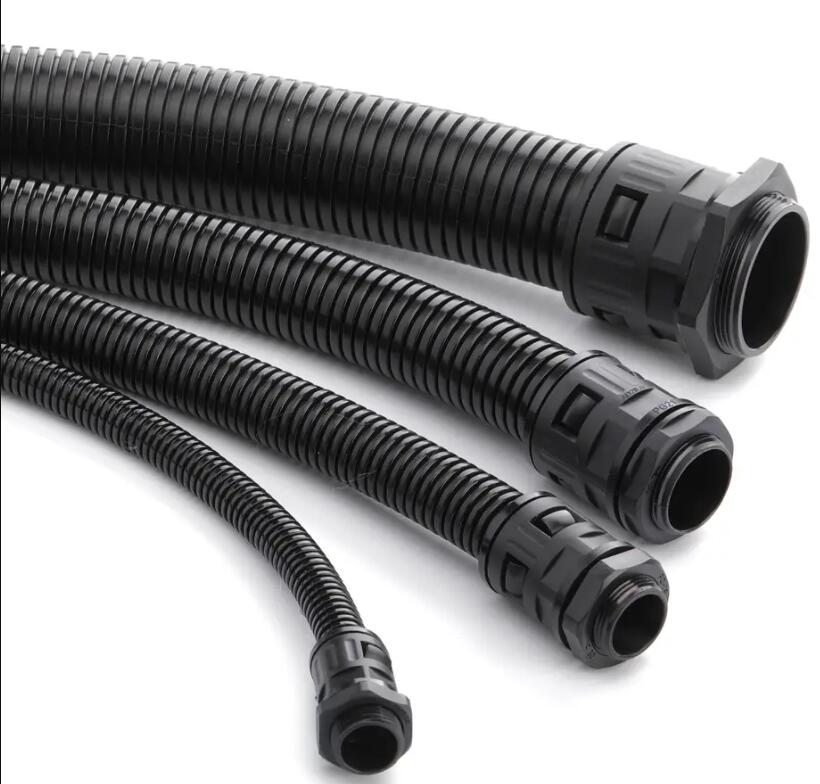

Convoluted Tubing
Insutek Convoluted tubing, which could be also called Wire Loom, Flexible conduit, corrugated tube, it could be manufactured from PA, PE and PP material. It could not only protect wire and cable from outer damage, but also offer great properties of good flexibility, bending, UV radiation, resist to acids, solvents and other chemicals
Related products
Insutek Convoluted tubing, which could be also called Wire Loom, Flexible conduit, corrugated tube, it could be manufactured from PA, PE and PP material. It could not only protect wire and cable from outer damage, but also offer great properties of good flexibility, bending, UV radiation, resist to acids, solvents and other chemicals.

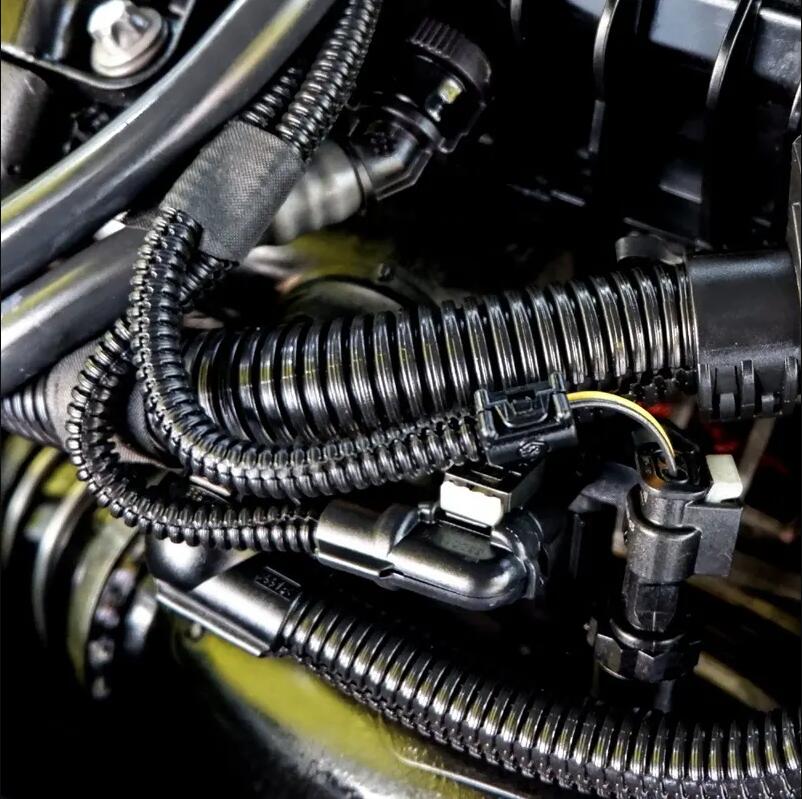

Application: EV wire harness protection, hydraulic hoses, switchgears building etc.
Features/Benefits
- PE: -40 to +90℃
- PP: -30 to +110℃
- PA: -40 to +130℃
|
PE material |
PA material |
PP material |
I.D*O.D |
Bending Radius R±10% |
Packing(m) |
|
CTPE-7.0 |
CTPA-7.0 |
CTPP-7.0 |
4.5 ×7.0 |
5 |
200 |
|
CTPE-8.5 |
CTPA-8.5 |
CTPP-8.5 |
5.5 ×8.5 |
8 |
100 |
|
CTPE-10.0 |
CTPA-10.0 |
CTPP-10.0 |
7.0 ×10.0 |
10 |
100 |
|
CTPE-12.0 |
CTPA-12.0 |
CTPP-12.0 |
8.5 ×11.5 |
15 |
100 |
|
CTPE-13.0 |
CTPA-13.0 |
CTPP-13.0 |
10.0 ×13.0 |
20 |
100 |
|
CTPE-15.8 |
CTPA-15.8 |
CTPP-15.8 |
12.0 ×15.8 |
30 |
100 |
|
CTPE-18.5 |
CTPA-18.5 |
CTPP-18.5 |
14.3 ×18.5 |
40 |
100 |
|
CTPE-21.2 |
CTPA-21.2 |
CTPP-21.2 |
17.0 ×21.2 |
45 |
100 |
|
CTPE-25.0 |
CTPA-25.0 |
CTPP-25.0 |
21.0 ×25.0 |
50 |
100 |
|
CTPE-28.5 |
CTPA-28.5 |
CTPP-28.5 |
23.0 ×28.5 |
55 |
50 |
|
CTPE-34.5 |
CTPA-34.5 |
CTPP-34.5 |
29.0 ×34.5 |
60 |
50 |
|
CTPE-42.5 |
CTPA-42.5 |
CTPP-42.5 |
36.0 ×42.5 |
70 |
25 |
|
CTPE-54.5 |
CTPA-54.5 |
CTPP-54.5 |
48.0 ×54.5 |
80 |
25 |
