Split Convoluted Tubing

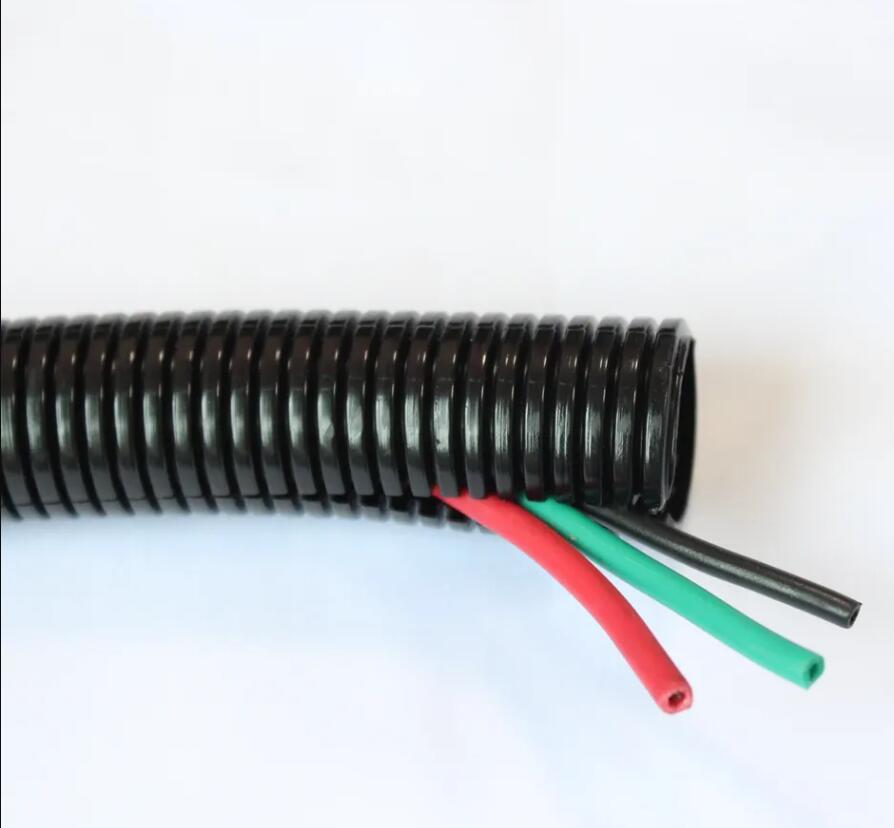

Insutek Convoluted tubing, which could be also called Wire Loom, Flexible conduit, corrugated tube, it could be manufactured from PA, PE and PP material. It could not only protect wire and cable from outer damage, but also offer great properties of good flexibility, bending, UV radiation, resist to acids, solvents and other chemicals.

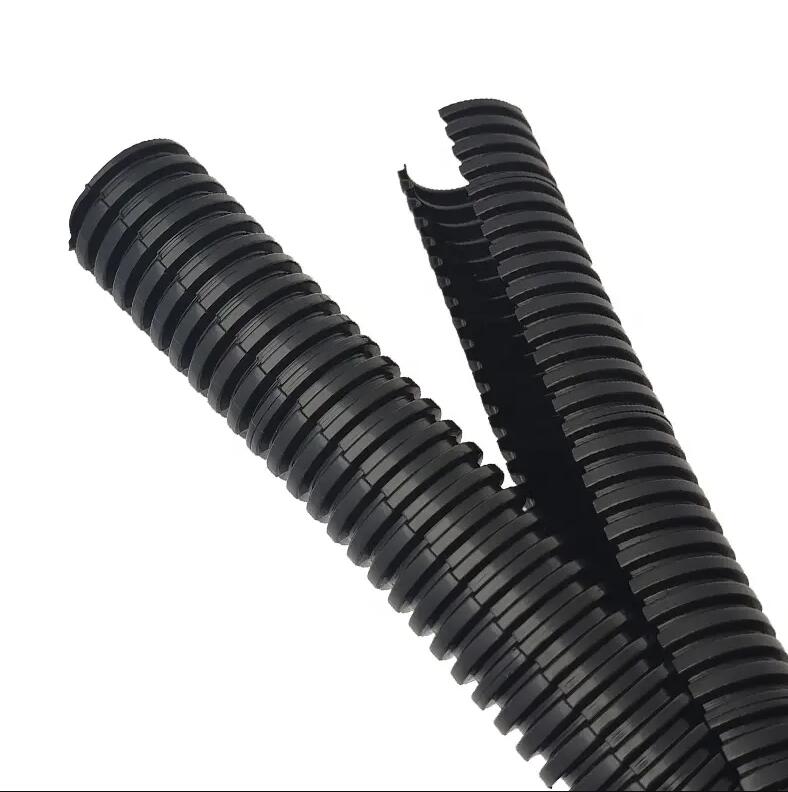

It has a small cut along the tubing end, which is more convenient for bundling and protection of wires and conduit.
Related products
Insutek Convoluted tubing, which could be also called Wire Loom, Flexible conduit, corrugated tube, it could be manufactured from PA, PE and PP material. It could not only protect wire and cable from outer damage, but also offer great properties of good flexibility, bending, UV radiation, resist to acids, solvents and other chemicals.
It has a small cut along the tubing end, which is more convenient for bundling and protection of wires and conduit.
Application: EV wire harness protection, hydraulic hoses, switchgears building etc.
Features/Benefits
- PE: -40 to +90℃
- PP: -30 to +110℃
- PA: -40 to +130℃
|
PE material |
PA material |
PP material |
I.D*O.D |
Bending Radius R±10% |
Packing(m) |
|
SPPE-7.0 |
SPPA-7.0 |
SPPP-7.0 |
4.5 ×7.0 |
5 |
200 |
|
SPPE-8.5 |
SPPA-8.5 |
SPPP-8.5 |
5.5 ×8.5 |
8 |
100 |
|
SPPE-10.0 |
SPPA-10.0 |
SPPP-10.0 |
7.0 ×10.0 |
10 |
100 |
|
SPPE-12.0 |
SPPA-12.0 |
SPPP-12.0 |
8.5 ×11.5 |
15 |
100 |
|
SPPE-13.0 |
SPPA-13.0 |
SPPP-13.0 |
10.0 ×13.0 |
20 |
100 |
|
SPPE-15.8 |
SPPA-15.8 |
SPPP-15.8 |
12.0 ×15.8 |
30 |
100 |
|
SPPE-18.5 |
SPPA-18.5 |
SPPP-18.5 |
14.3 ×18.5 |
40 |
100 |
|
SPPE-21.2 |
SPPA-21.2 |
SPPP-21.2 |
17.0 ×21.2 |
45 |
100 |
|
SPPE-25.0 |
SPPA-25.0 |
SPPP-25.0 |
21.0 ×25.0 |
50 |
100 |
|
SPPE-28.5 |
SPPA-28.5 |
SPPP-28.5 |
23.0 ×28.5 |
55 |
50 |
|
SPPE-34.5 |
SPPA-34.5 |
SPPP-34.5 |
29.0 ×34.5 |
60 |
50 |
|
SPPE-42.5 |
SPPA-42.5 |
SPPP-42.5 |
36.0 ×42.5 |
70 |
25 |
|
SPPE-54.5 |
SPPA-54.5 |
SPPP-54.5 |
48.0 ×54.5 |
80 |
25 |
